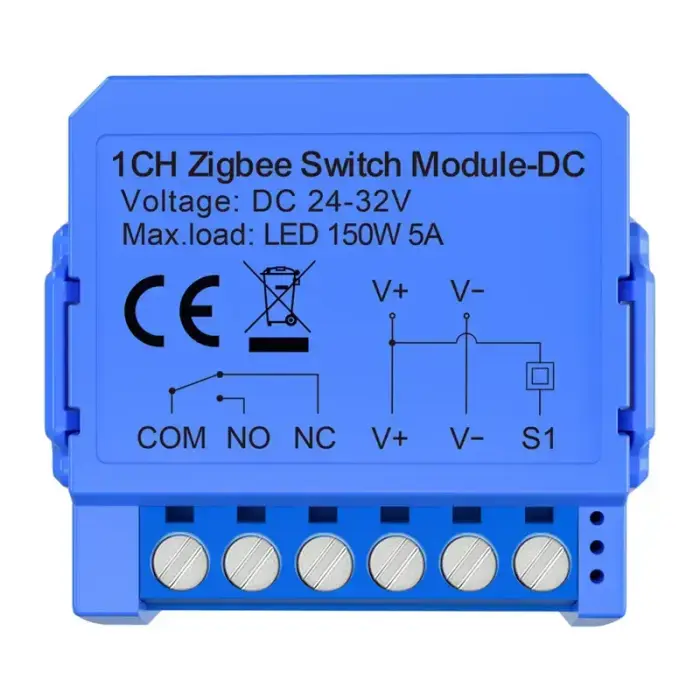

1-channel ZigBee switch module with voltage-free contact Avatto ZWSM16-DC32V-1

1-channel ZigBee switch module with dry contact Avatto ZWSM16-DC32V-1

The Avatto ZWSM16-DC32V-1 module is a smart switch with dry contact that allows you to control lights, blinds, pumps or other low-voltage devices in home automation. With ZigBee 3.0 connectivity, it offers stable communication, instant response to commands and the ability to work with Tuya Smart and Smart Life systems. With its help, you can create automatic scenarios, schedules and operate equipment by voice through Amazon Alexa or Google Assistant (with ZigBee gateway).

Low-voltage reliability

The Avatto ZWSM16-DC32V-1 is designed for low-voltage systems - it supports 12-32V DC power and a maximum load of 150W / 5A. High quality workmanship and CE and RoHS certifications confirm the safety of use. Thanks to its compact dimensions, the module fits perfectly into installation boxes or system enclosures, allowing you to upgrade your existing installation without replacing wiring.

Control from anywhere

The Tuya Smart or Smart Life mobile app gives you access to the device from your smartphone - you can turn on, turn off and schedule devices at any time. The module remembers its last state after a power outage, and the sharing function allows you to control it for other users as well. Full ZigBee integration allows you to operate the entire smart home ecosystem from a single app.

Quick installation and configuration

Installation of the Avatto ZWSM16-DC32V-1 is simple and intuitive. All you need to do is place the module in the box, connect the wires according to the diagram and connect it to the ZigBee gateway. Pairing is done by pressing the reset button or toggling the traditional switch five times - the LED on the module will then start flashing rapidly, indicating that it is ready for pairing. Once the configuration is complete, the module is ready for operation and can be controlled wirelessly.

Versatile application

Avatto ZWSM16-DC32V-1 ZigBee module is used wherever precise control of low-voltage devices is needed - for example, in 12/24V LED lighting systems, control of pumps, actuators or roller shutters. Thanks to ZigBee 3.0 communication, it works with a wide range of gateways and sensors to create a coherent and energy-efficient building automation system.

Included

• Avatto ZWSM16-DC32V-1 ZigBee switch module
• Mounting bracket with clip
• User manual



ManufacturerAvattoModelZWSM16-DC32V-1Type1-channel ZigBee switch module (Dry Contact)Power supplyDC 12-32 VMaximum load150 W / 5 AOperating frequency2.412 GHz - 2.484 GHzCommunication standardIEEE 802.15.4 (ZigBee 3.0)Operating rangeUp to 30 m (indoors)Operating temperature-10 °C ~ +40 °CDegree of protectionIP20Dimensions39 × 39 × 19.4 mmCertificationsCE, RoHS
