MPPT solar panel adapter for DJI power stations
The MPPT Solar Panel Adapter for DJI Power Stations enables DJI Power Series Power Stations to be charged environmentally using solar power. The device offers a maximum output power of 200 watts on a single channel and up to 400 watts with three channels. The adapter works with an input voltage range of 12-30 V DC and a maximum current of 10 A for a single channel and 16 A with three channels.
Comfortable use
The adapter operates at temperatures from -10° to 45° C, allowing it to be used in various environmental conditions. It is compatible with DJI Power 1000 and DJI Power 500 models, as well as with DJI-certified Zignes brand solar panels. Use of other brands of panels requires an MPPT module and conversion of the port to the XT60 interface.
Eco-friendly solutions
This solution is ideal for users who want to use renewable energy sources, reducing dependence on the electric grid. With the adapter, it is possible to charge devices in places without access to traditional power sources, making the DJI Power Station more mobile and eco-friendly.

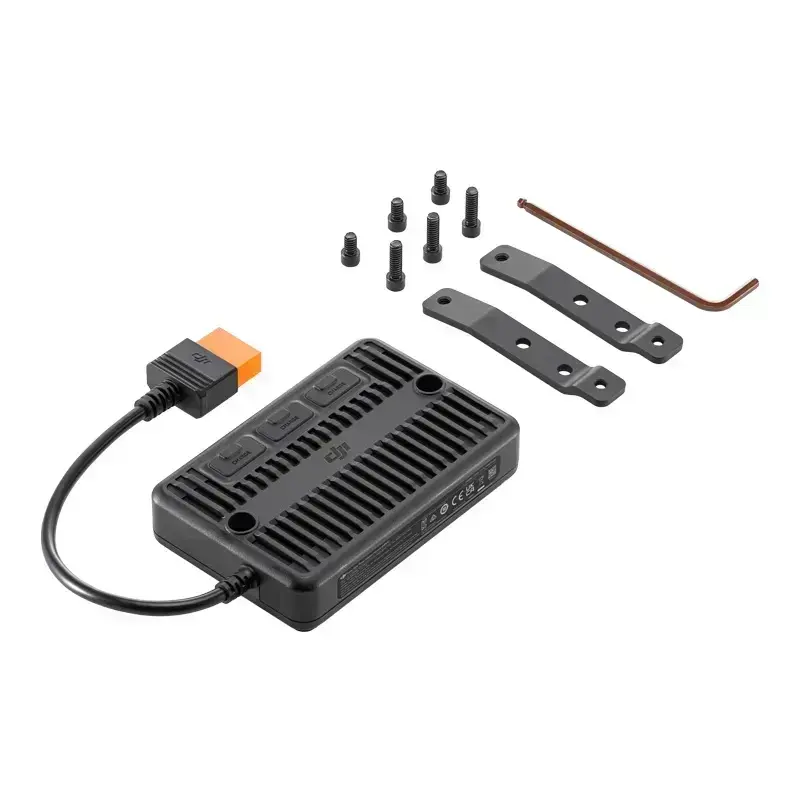

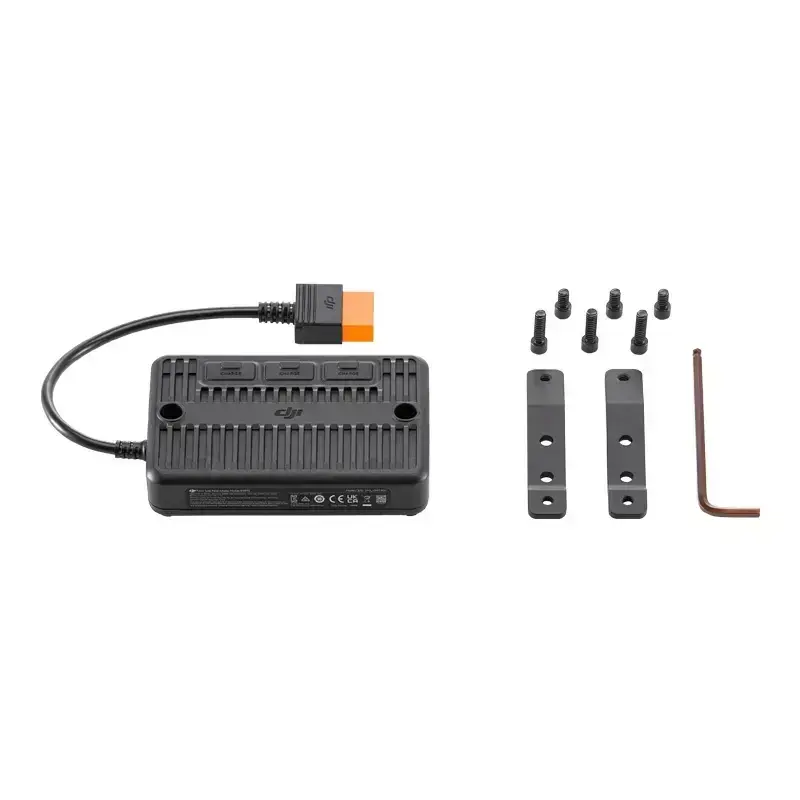

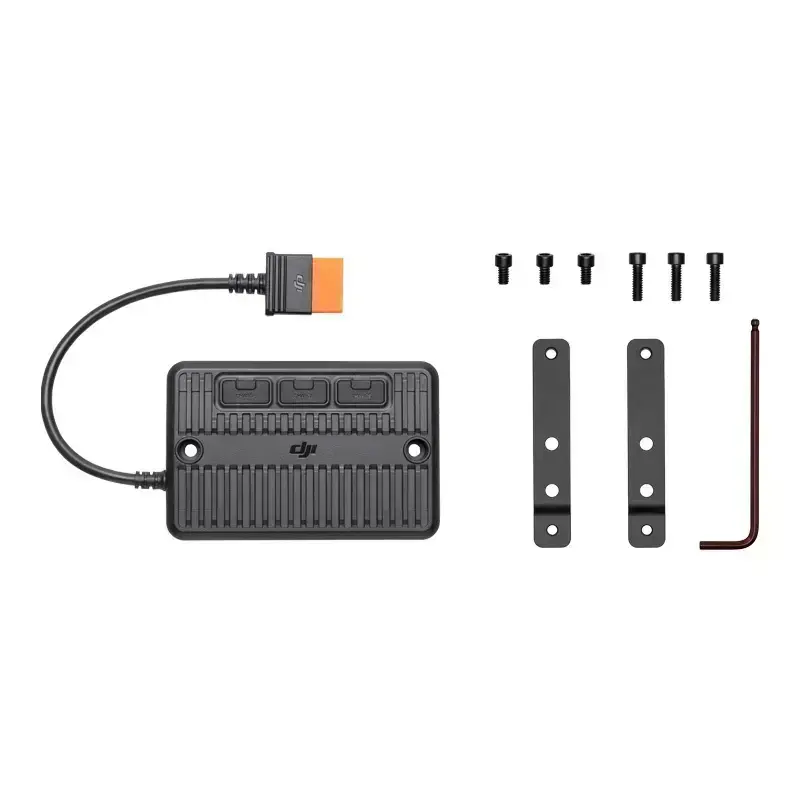

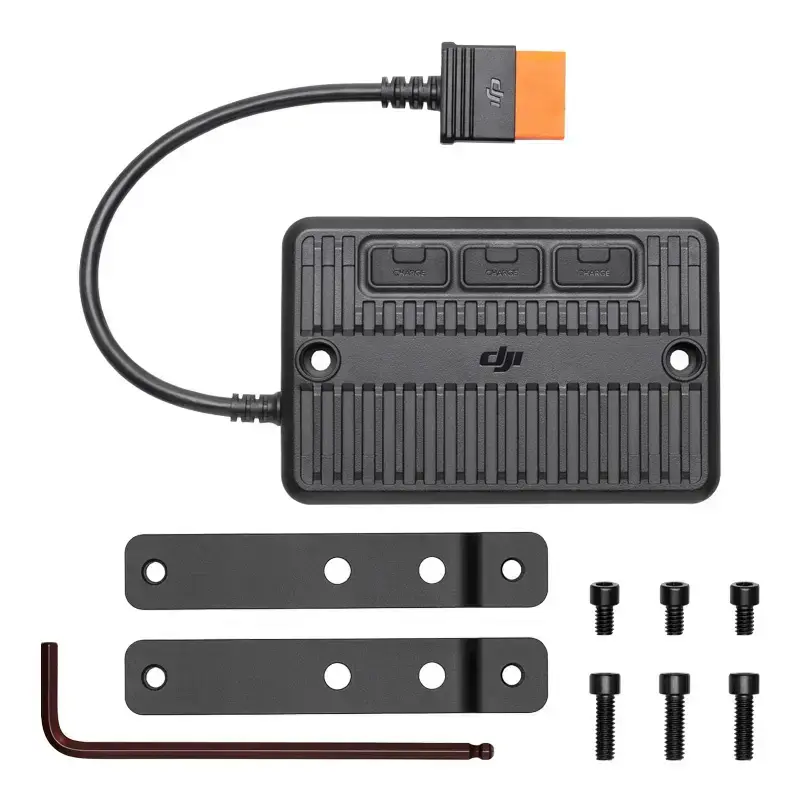

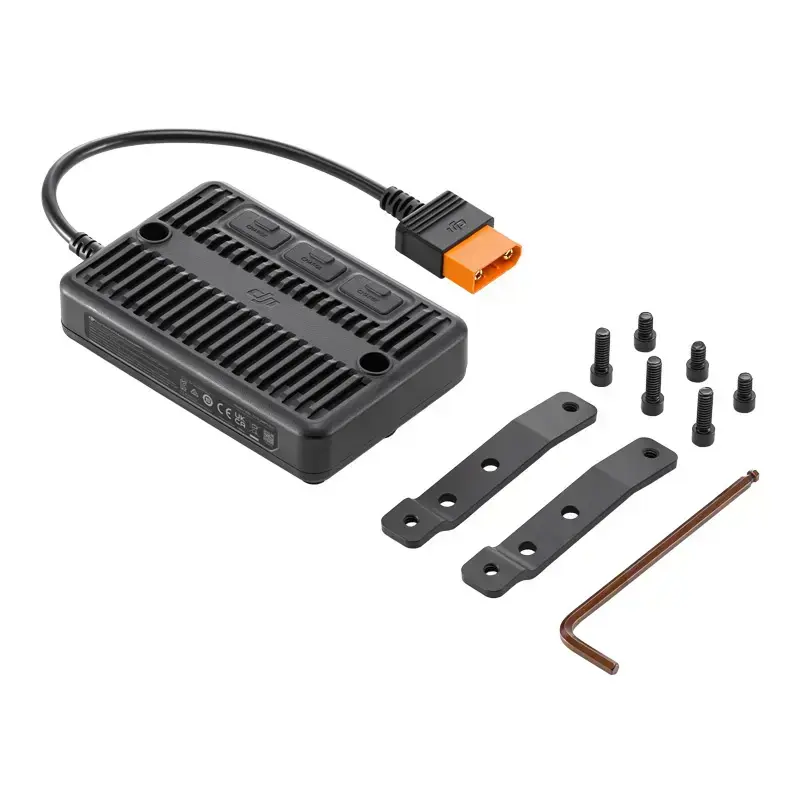

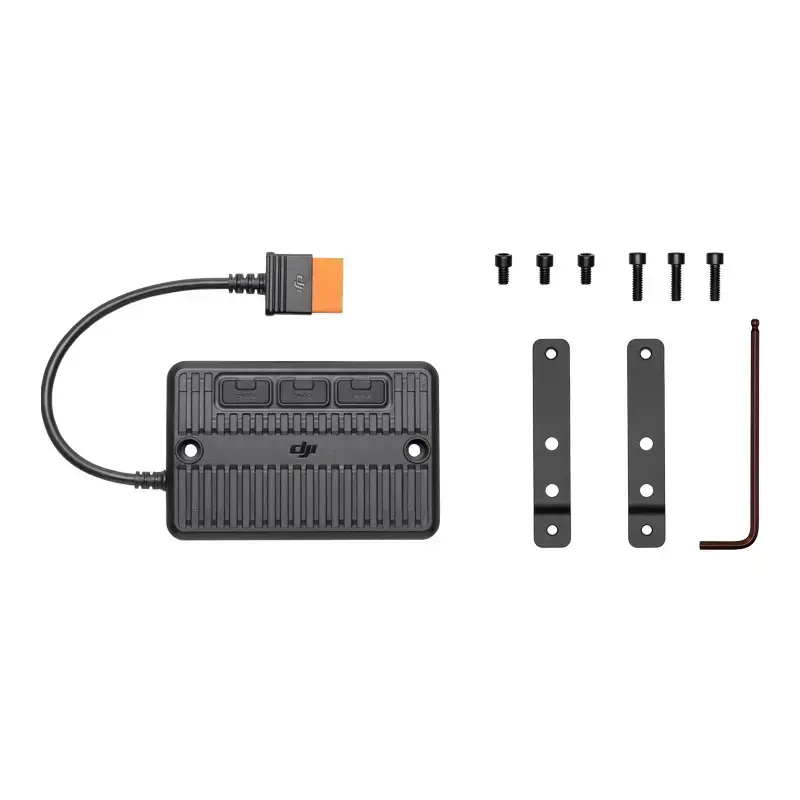

Included
- DJI Power solar panel adapter module (MPPT) × 1
- Metal heat dissipation bracket × 2
- Hex key with ball × 1
- 10 mm screw × 3
- 20 mm screw × 3
ManufacturerDJIModelCP.DY.00000041.01Total output powerSingle channel: Max. 200 watts; Triple channels: Max. 400 watts (with DJI Power 1000); Max. 300 watts (with DJI Power 500)Input voltage12-30 V, DCMaximum input currentSingle channel: 10 A; Triple channels: 16 AOperating temperature-10° to 45° C (41° to 113° F)CompatibilityDJI Power 1000, DJI Power 500
