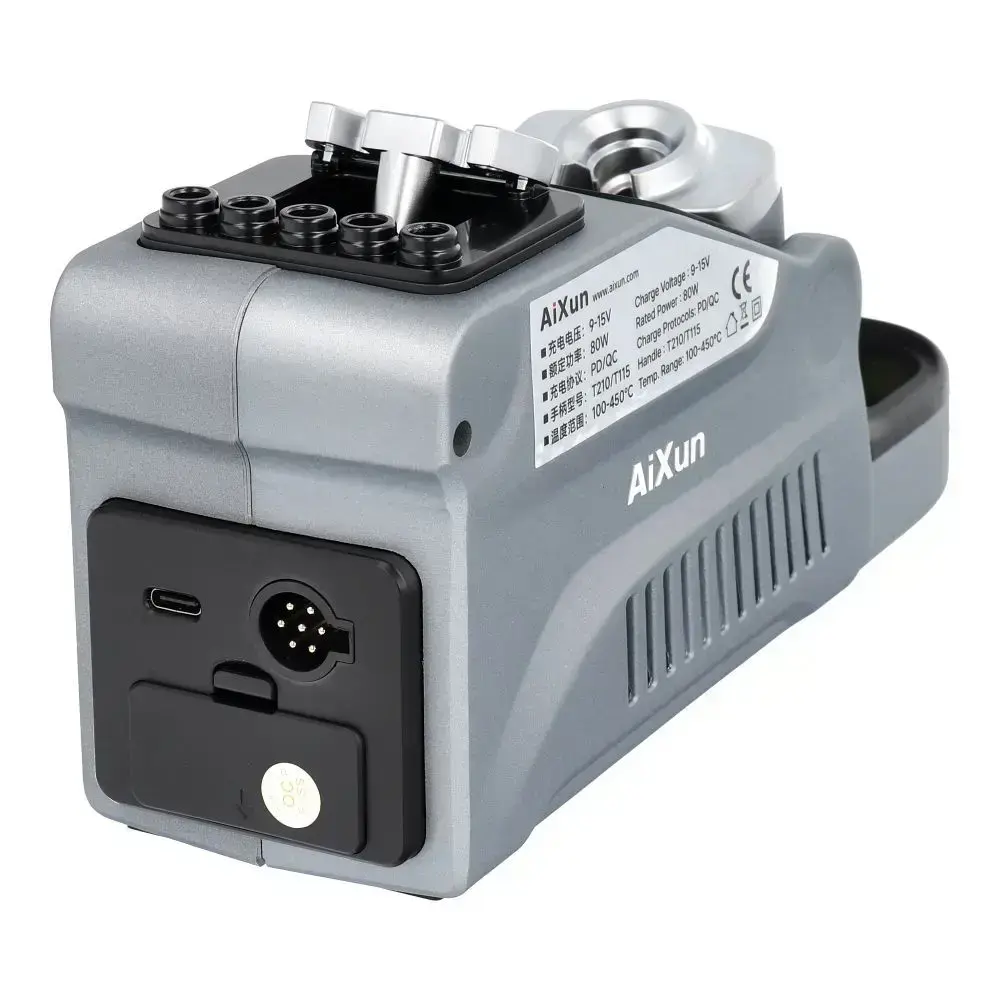

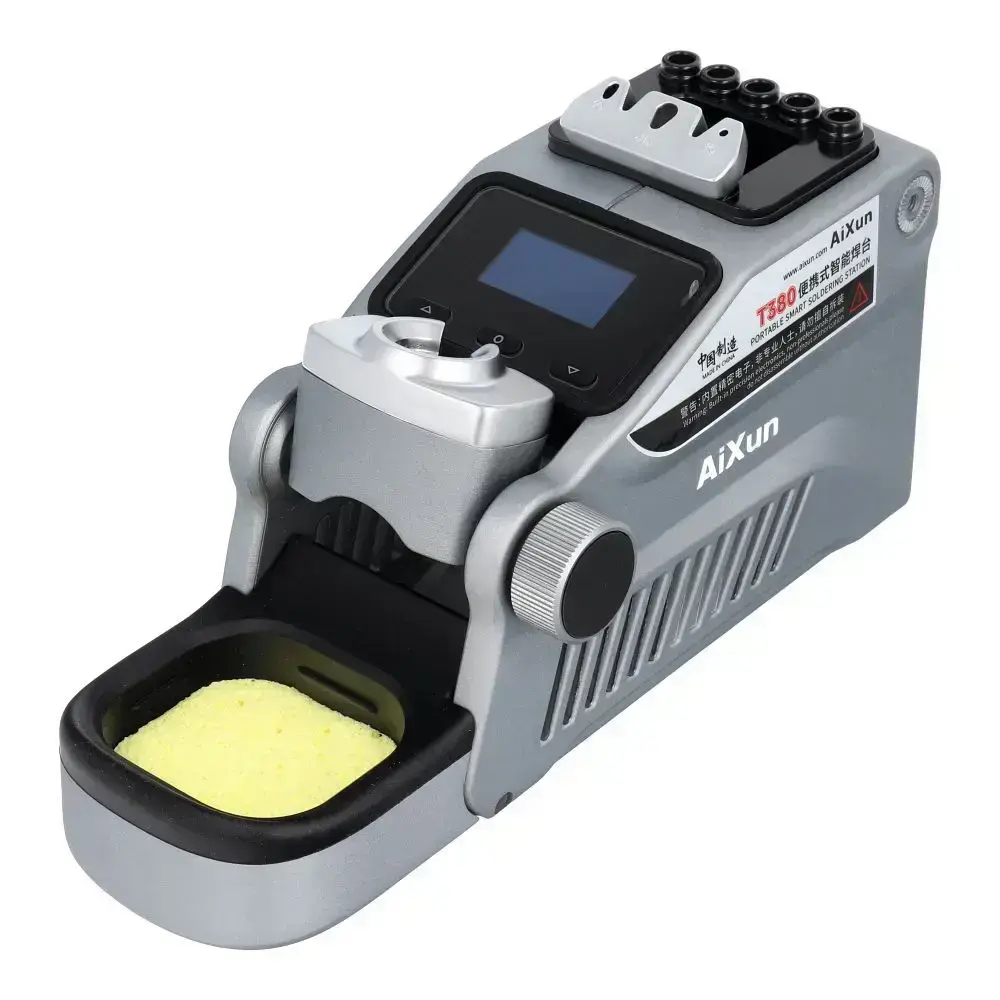

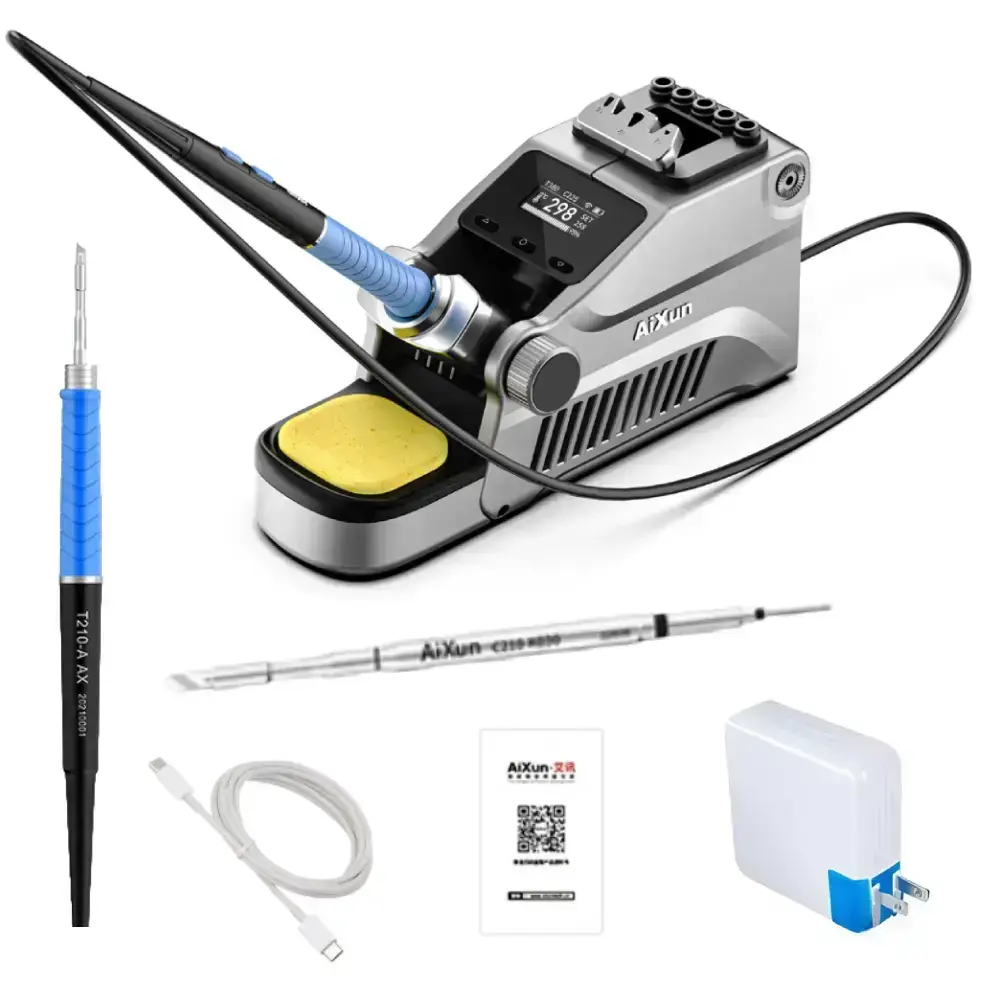

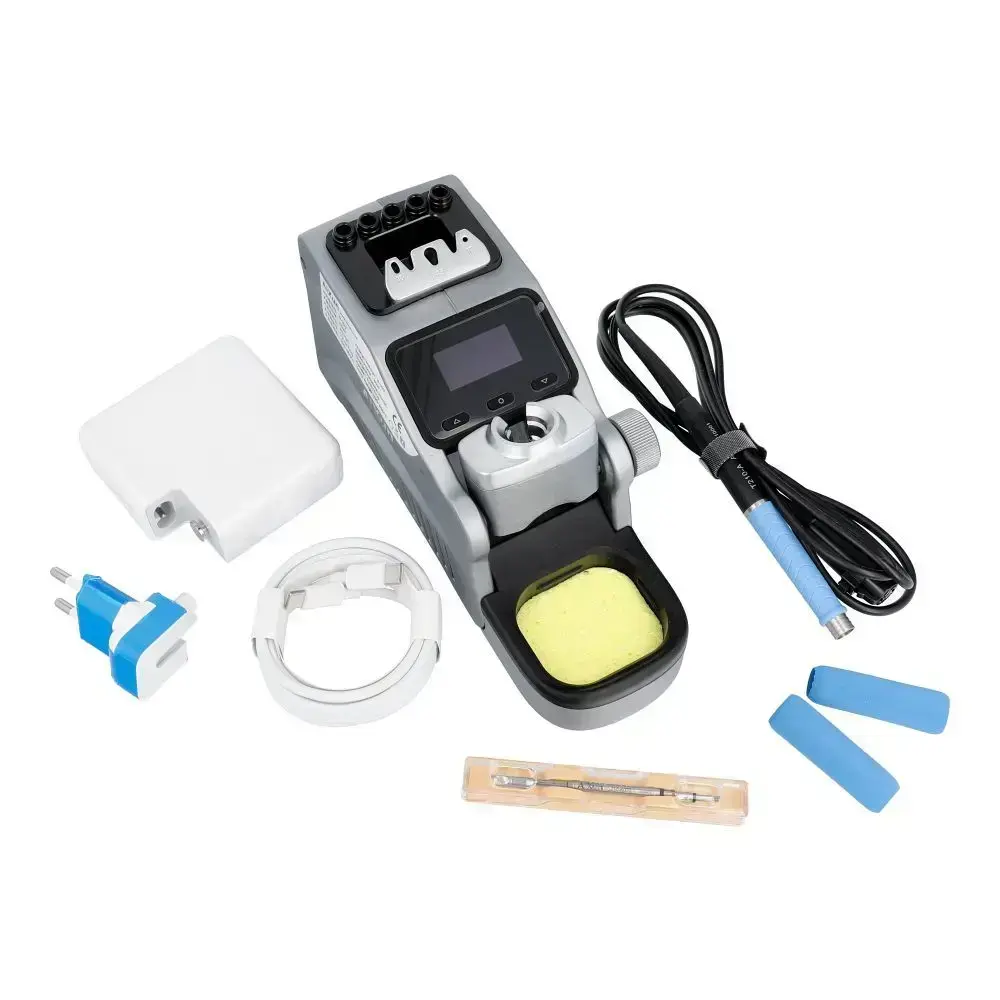

The AiXun T380 station is a revolutionary soldering solution designed for mobile technicians and micro-soldering workshops requiring total flexibility. Equipped with a built-in 18650 mAh lithium battery, this 80W portable station frees itself from the constraints of the mains while offering the performance of a high-end bench station. Its native compatibility with T210 series tips makes it the ideal precision tool for interventions on smartphone, tablet, and portable device motherboards.
The system is based on an intelligent PID temperature control algorithm, ensuring a rapid temperature rise from ambient to 350°C in less than 2 seconds. This thermal reactivity, coupled with a stability of ±2°C, allows for homogeneous fusion of solder without thermal stress on surrounding components. The user interface is served by a color OLED screen displaying real-time power consumption, set temperature, and battery status. The firmware is upgradable via Wi-Fi or Bluetooth, allowing for the latest software optimizations from the AiXun platform.
The compact design in aluminum alloy ensures efficient passive heat dissipation and increased durability against drops. The station supports fast charging via its USB-C port (compatible with PD and QC protocols), allowing for a full recharge in record time or extended use when connected to a high-capacity power bank or a PD 65W+ adapter.
Workshop Advice & Usage
To maximize the lifespan of T210 tips and battery life, we recommend configuring the "Standby" and "Sleep" modes via the station menu. Due to the fine tips of the T210, avoid excessive mechanical pressure during soldering. For extended sedentary use, connect the station to a 65W+ USB-C charger to keep the battery charged while ensuring maximum power stability during mass soldering (ground planes).
Technical Specifications:
Manufacturer reference: AiXun T380-210
Technology: Intelligent PID Control / Aerospace Aluminum Chassis
Compatibility: T210 series tips (AiXun and JBC)
Dimensions: 109 x 65 x 30 mm
Weight: Approx. 300g (main unit only)
Power Supply / Standards: 2600mAh Battery / USB-C PD/QC Charging
Output Power: 80W Max
Connectivity: Bluetooth and Wi-Fi (Cloud Update)
