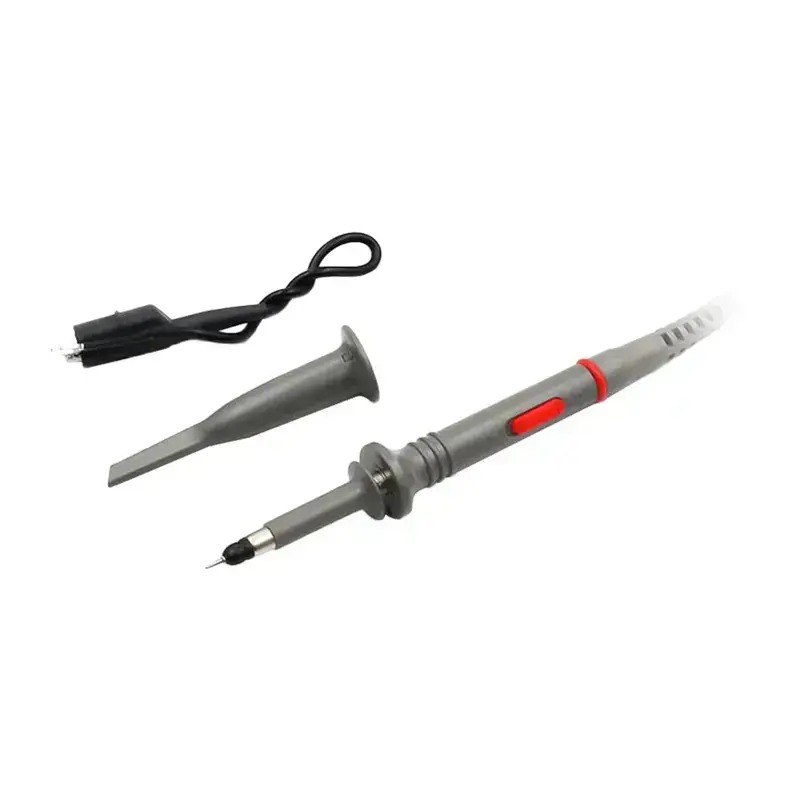

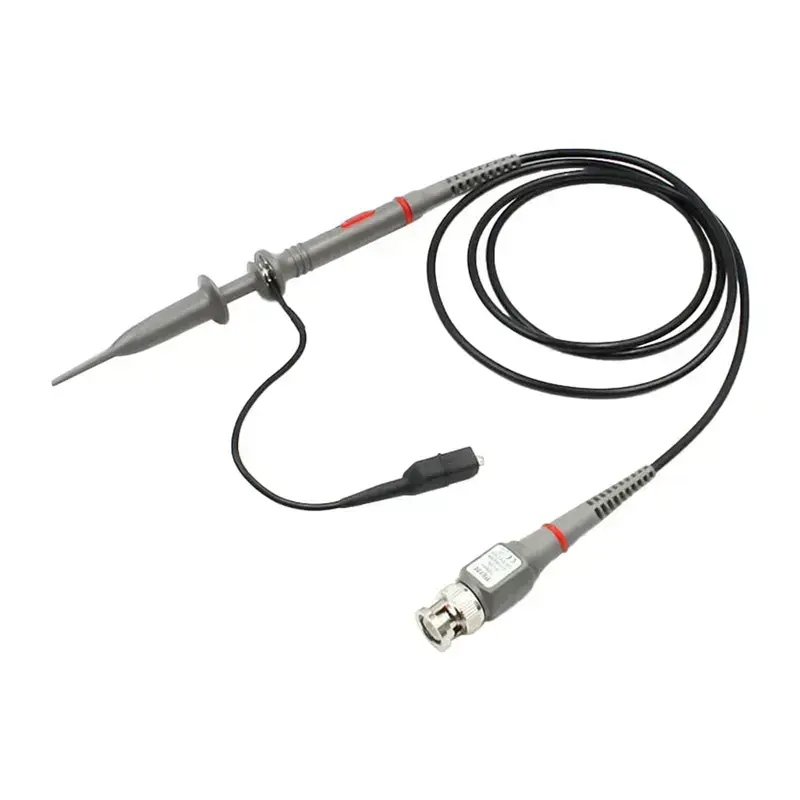

Fnirsi P6100 oscilloscope probe

The Fnirsi P6100 is an oscilloscope probe designed for precise signal measurements in everyday work with electronics. It offers a wide bandwidth, two attenuation modes, and solid electrical parameters, making it suitable for both service and hobbyist workshops.

Safe operation with higher voltages

In 1X mode, the probe supports voltages up to 200 V DC + AC Peak, and in 10X mode up to 600 V DC + AC. These parameters allow for comfortable work with many popular electronic devices and power modules. The appropriate voltage range increases safety and expands the range of applications.

Convenient cable length

The 120 cm long cable provides freedom of movement at the measuring station. This allows you to conveniently connect the probe even in less accessible places without excessive cable tension. The whole thing weighs about 80 g, so the probe does not burden the connector and fits well in your hand.

Included:

• Fnirsi P6100 oscilloscope probe



ManufacturerFnirsiModelP6100Frequency responseDC–6 MHz (1X mode), DC–100 MHz (10X mode)Attenuation ratio1:10Input capacitance:1X: 85 pF–120 pF, 10X: 18.5 pF–22.5 pFCompensation range10 pF–30 pFRise time< 3.5 nsOperating voltage1X: < 200 V DC + AC (peak), 10X: < 600 V DC + ACCable length120 cmOperating temperature range-10°C to +50°CStorage temperature range-20°C to +75°CHumidity≤ 5% (relative humidity)Weight80 gColorgray-black
