IMOU KIT Alarm System

IMOU KIT Alarm System

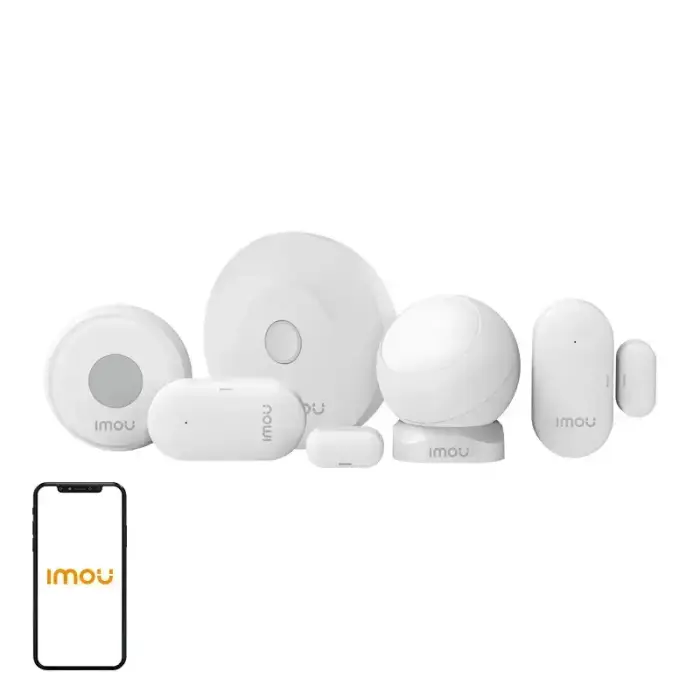

IMOU’s comprehensive security system, based on Zigbee 3.0 technology, combines the ZG2 control panel, the ZP1 motion sensor, two ZD1 door and window sensors, and the ZE1 panic button. Together, they form a cohesive ecosystem that can be conveniently managed via a mobile app—remotely arm or disarm the system, receive real-time notifications, and create action scenarios. The kit offers wireless communication, a range of up to 200 m (in open space), a long battery life of up to 2 years, and a quick response to events, helping to enhance home security. The IMOU system allows you to create smart scenes, such as linking sensors to audible and visual alarms or integrating with IMOU cameras.

Smart Command Center – ZG2 Gateway

The ZG2 gateway serves as the heart of the entire alarm system, handling communication between all Zigbee devices and transmitting data to the IMOU cloud and the user’s app. It supports the IEEE 802.11 b/g/n 2.4 GHz Wi-Fi standard and Zigbee 3.0, ensuring a stable and fast connection. The device can be mounted on a wall or placed on a desk, and its compact dimensions (68 × 68 × 24 mm) make it easy to fit into any space.

Instant response to opening – ZD1 sensors

ZD1 door and window sensors monitor every opening and closing, reacting the moment the magnet moves away from the sensor. They work not only on doors and windows but also on cabinets or drawers, which expands the scope of protection. Upon detecting an event, they immediately send a signal to the gateway, triggering an alarm and automation scenes. Thanks to Zigbee communication, a range of up to 200 m, and low power consumption (≤10 µA in standby mode), the devices operate reliably for a long time without the need for frequent battery replacement.

Effective motion detection – the ZP1 sensor and assistance when needed

The ZP1 motion sensor uses infrared to detect human presence within a range of up to 8 meters at a 90° detection angle. It also works in the dark by analyzing thermal radiation, allowing it to detect motion regardless of lighting conditions. It generates minimal data traffic, protecting user privacy while effectively identifying potential threats. Meanwhile, the ZE1 panic button allows you to call for help immediately with a single click. It supports various operating modes—single click, double click, and long press—allowing you to assign different functions to it, such as arming or disarming the system or triggering automation scenes. Upon activation, it sends a signal to the gateway, which triggers a local alarm and notifications in the app.

Included in the set:

• ZG2 Gateway
• ZD1 Door and Window Sensor x2
• ZE1 Panic Button
• ZP1 Motion Sensor
• Quick Start Guide



ZD1

Wireless ProtocolZigbeeTransmission Power≤10 dBmOperating VoltageDC 3 VLow Voltage Alarm2.6 VStandby Current≤10 µAMounting methodWall-mountedBattery life2 years (20 times per day)Transmission frequency2.4 GHzCommunication range200 m (open space)Operating temperature-14°F to 131°FOperating current≤30 mA



ZP1

Wireless protocolZigbeeTransmission power≤15 dBmOperating voltageDC 3 VLow voltage alarm2.7 VStandby current≤15 µADetection range8 mMounting methodWall-mountedBattery life2 years (20 times per day)Transmission frequency2.4 GHzCommunication range200 m (open space)Battery typeCR123VOperating temperature-14°F to 131°FOperating current≤25 mADetection angle90°Mounting height2.2 m



ZE1

Wireless protocolZigbeeTransmission power≤15 dBmOperating voltageDC 3 VInstallationDesktop / wall-mountedBattery life2 years (20 times per day)Transmission frequency2.4 GHzCommunication range200 mReceive sensitivity-96 dBmOperating temperature-14°F to 131°FDimensionsΦ50 × 16 mm



ZG2

Wireless protocolWi-Fi IEEE 802.11 b/g/n 2.4 GHz Zigbee 3.0Operating voltageDC 5 VOperating temperature-10–55°COperating humidity0–95% RH, non-condensingMounting methodDesktop and wall-mountedDimensions68 × 68 × 24 mm
