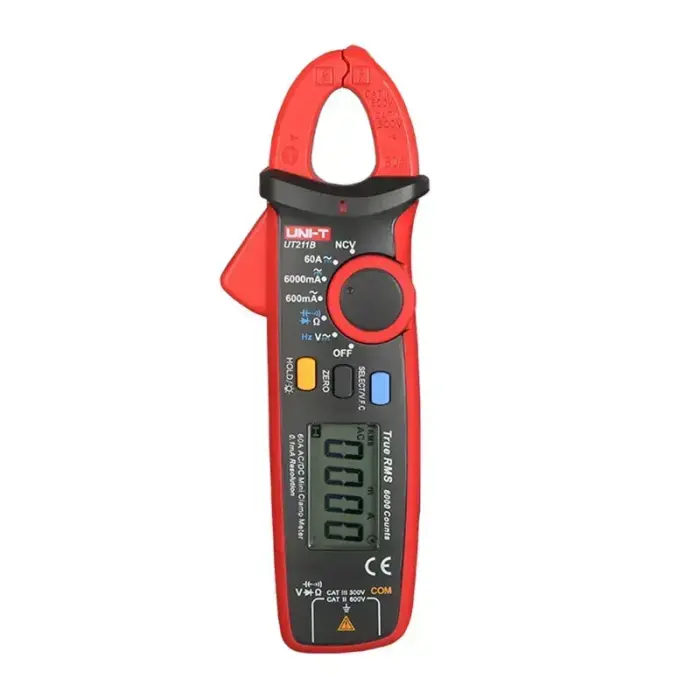

Uni-T 60A UT211B Precision Clamp Meter

Uni-T 60A UT211B Precision Clamp Meter

The Uni-T UT211B is a precision mini clamp meter designed for measurements requiring high accuracy, particularly when working with electronics, photovoltaic systems, and circuits in electric vehicles. The device measures AC and DC current up to 60 A, AC/DC voltage up to 600 V, resistance up to 60 MΩ, and capacitance up to 62 mF, while the AC current measurement resolution of 0.01 A allows for convenient monitoring of even small values. Its compact, lightweight design makes the model well-suited for use in tight and hard-to-reach spaces.

High accuracy and practical features

The UT211B offers a maximum reading of 6000, automatic range switching, and True RMS measurement, which translates to greater precision and convenience in daily work. The device is equipped with VFC, non-contact voltage detection (NCV), Zero mode, diode test, and a continuity buzzer, making it well-suited for diagnosing and testing various electrical systems. The Data Hold function facilitates reading results, and the LCD backlight improves visibility in dimly lit areas.

Compact design and ready for use

The meter weighs 170 g and measures 175 × 60 × 33.5 mm, making it comfortable for everyday use and easy to carry. Automatic shut-off after approximately 15 minutes, a low-battery indicator, and input protection enhance safety and ease of use. The kit includes batteries and test leads, so the Uni-T UT211B is ready to use right out of the box.

Included

• Clamp meter
• Batteries x2
• Test leads
• Carrying case
• User manual



Specifications

ManufacturerUni-TModelUT211BTypePrecision clamp meterAC current60A ±(2.0%+5)AC current resolution0.01ADC current60A ±(2%+3)AC voltage600V ±(0.8%+3)DC voltage600V ±(0.7%+3)Resistance60MΩ ±(0.8%+2)Capacitance62mF ±(4%+5)Maximum reading6000FunctionsTrue RMS, NCV, VFC, Zero mode, diode test, continuity test, Data Hold, LCD backlight, auto power off, low battery indicator, input protection, continuity buzzer, auto range switchingInput impedance for DCV≥10MΩPower supply1.5V battery (R03) x2Display dimensions39.3mm x 26.5mmWeight170gDimensions175mm x 60mm x 33.5mmColorRed and grayCertificationsCE, UKCA, cETLus
