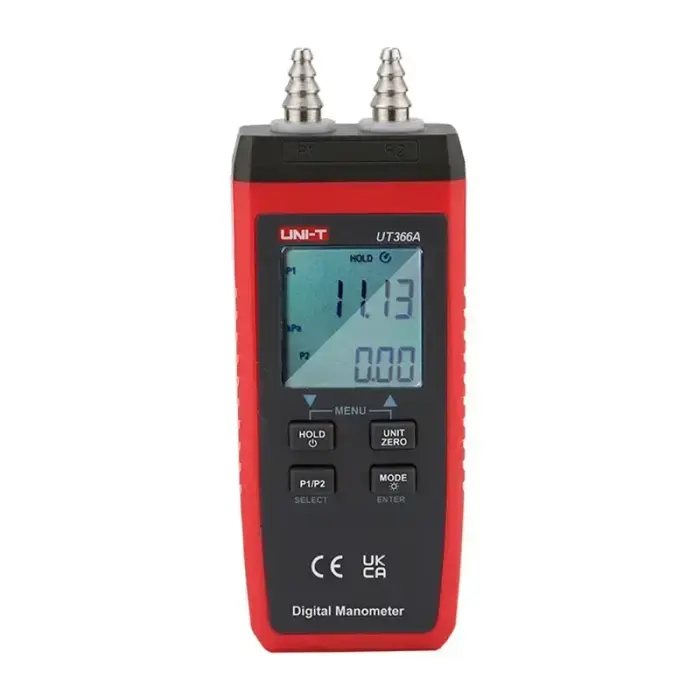

Uni-T UT366A Digital Pressure Gauge

Uni-T UT366A Digital Pressure Gauge

The Uni-T UT366A digital pressure gauge is a compact and precise device for measuring relative and differential pressure, ideal for use in HVAC systems, plumbing, and industrial applications. This model allows for independent measurement of the P1 and P2 channels with clear LED indicators, and thanks to a wide range of units and high accuracy of ±0.5% FS, it provides reliable results under various operating conditions. Additionally, when a Pitot tube is connected, the device also allows for air velocity measurement, which significantly expands its functionality. A clear backlit display, measurement logging functions, and automatic shut-off enhance the comfort of daily use.

Convenient operation and practical features

The device was designed with convenience and practicality in mind. The compact housing fits comfortably in the hand, and the built-in magnetic hook allows the pressure gauge to be easily hung during operation, facilitating use in hard-to-reach areas. Features such as MAX/MIN/AVG and HOLD allow for better analysis of results and monitoring of pressure changes over time, which translates to greater control over the system and faster detection of potential abnormalities.

Robust construction and operational reliability

Thanks to its wide measurement range in multiple units and robust construction, the UT366A performs well in both service applications and more demanding industrial environments. Additional features, such as a low-battery indicator and automatic shutdown after 5 minutes, help minimize downtime and ensure continuous operation.

Included

• Uni-T UT366A Digital Pressure Gauge
• Batteries (3 × AAA)
• Measuring hose
• Carrying case
• Magnetic hook
• User manual



ManufacturerUni-TModelUT366AMeasuring rangeup to ±15 kPa (±150 mbar / ±2.175 psi)Resolutionfrom 0.01 kPaAccuracy±0.5% FS (at 25°C)Supported unitskPa, mbar, bar, psi, mmHg, inH₂O, inHg, oz²/in², kgcm², ftH₂O, mmH₂O, hPa, m/s, fpmFunctionsMAX / MIN / AVG / HOLDAdditional featuresLED indicator, backlit display, auto-off, low battery indicatorPower supply3 × 1.5V AAA batteriesOperating temperature0 ~ 50°C, ≤85% RHDimensions137.8 × 53 × 30 mmCertificationsCE, UKCA
