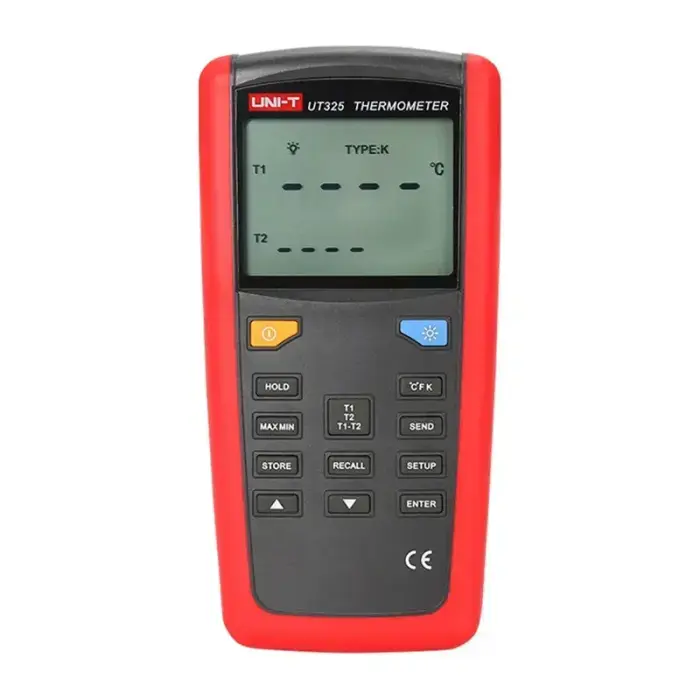

Uni-T UT325 Contact Thermometer

Uni-T UT325 Contact Thermometer

The Uni-T UT325 contact thermometer is a practical tool for fast and precise temperature measurement using thermocouple probes, supporting both single and dual inputs. A wide operating range (including -200°C to 1372°C for Type K), selectable units (°C/°F/K), and data logging and analysis via USB make it suitable for a wide range of applications—from service and industry to laboratories. A clear backlit display, MAX/MIN/AVG modes, and measurement memory facilitate result monitoring, while automatic calibration and threshold alarms help maintain measurement reliability and safety.

Versatile applications and user-friendly operation

Measurement precision stems from compatibility with various thermocouple types (K, J, T, E, R, S, N), allowing the user to select a probe suited to a specific task and temperature range. The dual input allows for simultaneous comparison of two sources, which speeds up diagnostics and reduces errors. Data Hold, auto-off, and low-battery indicators enhance field convenience, while the USB interface with PC software enables data archiving and analysis—resulting in better process control and documentation of results.

Rugged design and ready for action

The device is designed for everyday use: a compact housing, power from a 9V battery or via USB, and a clear display make the UT325 ready for use in various conditions. Additional features, such as output signals and high/low threshold alarms, allow for a quick response to temperature deviations. It is a solid choice for those who need reliable measurements and convenient operation without unnecessary complications.

Included

• Uni-T UT325 Thermometer
• Type K Temperature Probe
• USB Cable
• 9V Battery (6F22)
• PC software (CD)
• User manual
• Manufacturer’s packaging



ManufacturerUni-TModelUT325Thermocouple probe supportK, J, T, E, R, S, NResolution0.1°C (1°C above 999.9°C)Units°C / °F / KModesMAX / MIN / AVGData memoryup to 100 recordsFunctionsData Hold, auto power off, auto calibration, high/low alarms, output signalInterfaceUSB + PC softwareDisplay30 × 32 mmPower supply9V battery (6F22) or USBDimensions175 × 85 × 30 mmWeight270 gCertificationsCE, UKCA
