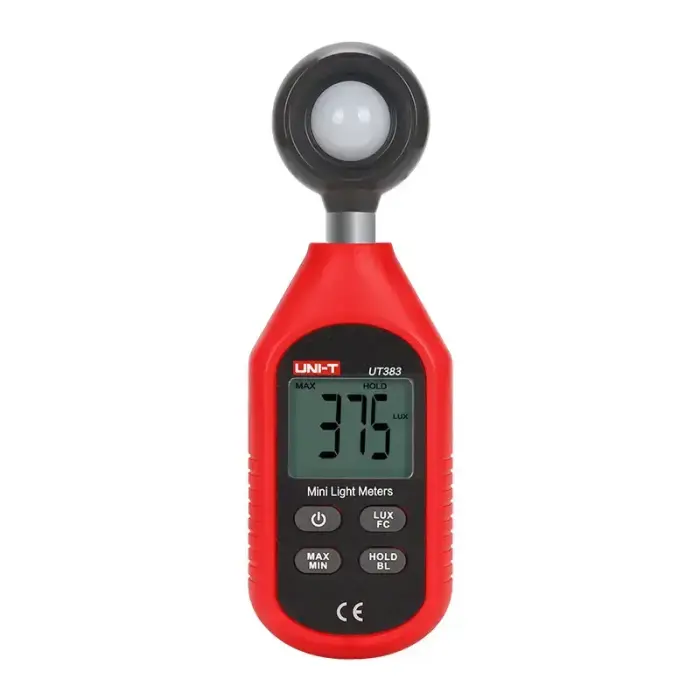

UNI-T UT383 light meter

UNI-T UT383 light meter

UNI-T UT383 is a lightweight and handy digital lux meter designed to measure light intensity in Lux and Fc units. Thanks to its large measuring range and fast response time, it will prove useful both in professional work - such as in design offices, industrial plants, photo studios - and in everyday use at home, school or gardening. The meter is distinguished by its simplicity of operation and easy-to-read backlit screen.

Wide measurement range

The UT383 can measure light intensity from 0 to 199,900 Lux or 0 to 18,500 Fc. Automatic resolution changes are available for different brightness levels - from 1 Lux to 100 Lux and from 1 Fc to 10 Fc, depending on the range. Measurement accuracy reaches ±(4% + 8) at lower values and ±(5% + 10) at higher values, allowing accurate control of lighting conditions in working, public and private spaces.

Efficient operation

The sampling time is just 0.5 seconds, so you get up-to-date data almost instantly. MAX/MIN functions allow you to track extreme values, and the Data Hold option lets you keep the current result on the screen. Additional conveniences include automatic shutdown after a period of inactivity, an overload (OL) alarm and a low battery indicator.

Clear display and lightweight design

The meter features a 32 × 26 mm backlit LCD screen that provides good readability even in low ambient light. The whole unit weighs just 118 g. Thanks to its compact size (160 × 50 × 28 mm), the UT383 can be conveniently carried in a pocket, bag or tool case.



ManufacturerUNI-TModelUT383Measurement rangeLUX: 0-199 900 Lux; FC: 0-18 500 FcMeasurement accuracy0-9999 Lux / 0-999 Fc: ±(4% + 8); ≥10,000 Lux / ≥1000 Fc: ±(5% + 10); ≥100,000 Lux / ≥9999 Fc: ±(5% + 10)Resolution1 Lux (up to 9999 Lux); 10 Lux (above 10,000 Lux); 100 Lux (above 100,000 Lux); 1 Fc (up to 9999 Fc); 10 Fc (above 10,000 Fc)Sampling time0,5 sMAX/MINYesData storage (Data Hold)YesLCD backlightYesAutomatic shutdownYesOverload indicator (OL)YesLow battery indicatorYesPower supply3x 1.5V battery (R03/AAA), includedDisplay size32 × 26 mmWeight118 gDimensions160 × 50 × 28 mm
