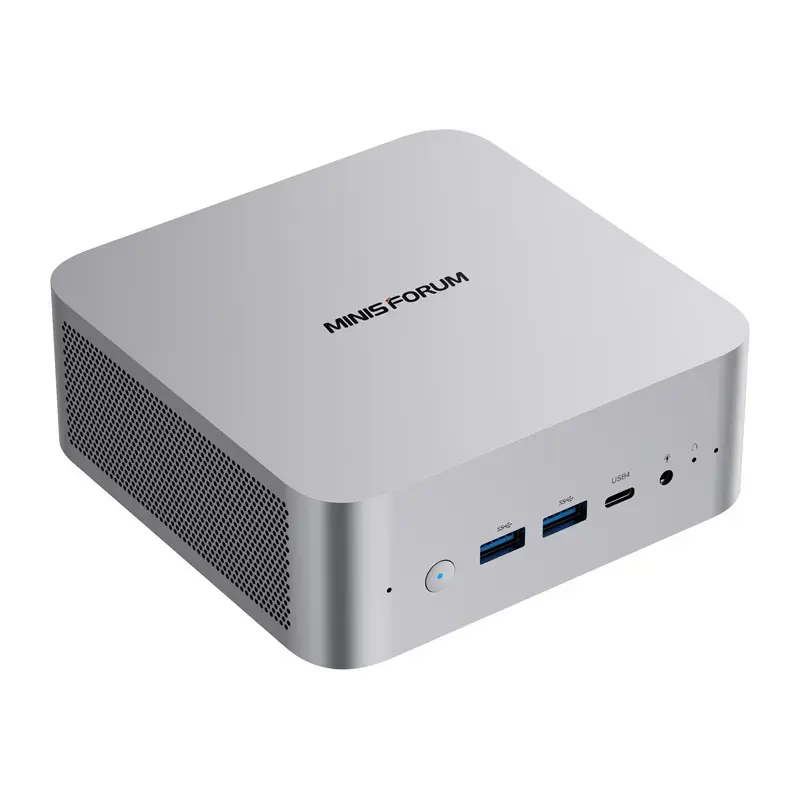

MINI-PC Minis Forum M1 Pro-125H Intel Core Ultra 5 125H barebone
The MINIS FORUM M1 Pro-125H is equipped with an Intel Core™ Ultra 5 125H processor with 14 cores and 18 threads and integrated Intel Arc™ graphics. It supports up to 128 GB of DDR5 5600 MHz RAM and two high-speed NVMe PCIe 4.0 SSDs (up to 4 TB). The set of connectors includes, among others, 2 USB4 ports, HDMI 2.1, DP 1.4, OcuLink (for eGPU), LAN 2.5G, as well as Wi-Fi 7 and Bluetooth 5.4. The computer can be placed on a desk or attached to the back of a monitor (VESA bracket included). The whole thing weighs just 600 g with dimensions of 128 × 126 × 52 mm.
AI-based performance - Intel Core™ Ultra 5 125H
The M1 Pro-125H is equipped with an Intel Core™ Ultra 5 125H processor with 14 cores and 18 threads. Clocking up to 4.5 GHz and supporting advanced AI features, the computer easily handles multitasking, video editing, data work, virtualization or gaming. In Cinebench R23 (Multi-Core) tests, it achieves 14,071 points.
Support for up to 128 GB DDR5 RAM and 4 TB SSD
The MINIS FORUM M1 Pro supports DDR5 RAM in a dual-channel configuration, with up to 5600 MHz and a maximum capacity of up to 128 GB - making it unique in this class of devices. Two M.2 PCIe 4.0 slots allow storage expansion up to 4TB and support RAID 0/1, which translates into instant access to data and greater data security.
Capable of connecting 4 monitors and GPU expansion
With HDMI 2.1, DP 1.4 and two USB4 ports, the M1 Pro supports up to 4 4K (or even 8K) displays simultaneously. This is ideal for those working with multiple applications and screens. In addition, the available OcuLink port allows you to connect an external graphics card (eGPU), extending the mini-PC's graphics capabilities to the level of a workstation or gaming PC.
Reliable connectivity
The M1 Pro offers the fastest standards: Wi-Fi 7 (up to 5.8 Gbps), Bluetooth 5.4 and Ethernet 2.5G, so you can count on lightning-fast data transfers, smooth video conferencing and stable network connectivity.
Advanced cooling and quiet operation
A dual fan system and pure copper heatpipes are responsible for efficient cooling. Even under full load, temperatures do not exceed 86°C, and the noise level does not exceed 45 dB - guaranteeing comfortable and stable operation in any conditions.
Clear sound
The built-in sound card (YH-SP6740-01) with active noise cancellation ensures clear sound during meetings and recordings. The ability to connect external audio devices via USB enables even better sound quality and flexibility for multimedia work.
General
ManufacturerMinis ForumModelM1 Pro-125HSupported operating systemWindows 11 ProDimensions128 x 126 x 52 mm (L x W x H)Weight0.6kg
Processor (CPU)
ProcessorIntel® Core™ Ultra 5 125HNumber of cores14 (4 P cores + 8 E cores + 2 LPE cores)Number of threads18Base frequency1.2GHzMax Turbo frequency4.5GHzTDP (Performance Mode)Fast: 65W / Slow: 65WTDP (Balance Mode)Fast: 65W / Slow: 45W
Graphics card (GPU)
Integrated graphicsIntel® Arc™ graphics
Memory (RAM)
Memory typeDDR5 (SO-DIMM x 2)Optional RAM capacity0/32/64GBSupported clocking5600 MHzMaximum supported memory128GB
Drive
SSD slots2×M.2 2280 NVME SSD (up to 4TB) (PCIe4.0x4)Optional SSD capacity0/1TB/2TB
Wireless connectivity
WiFi/BT module (PCIe only)M.2 2230 E-KeyWi-FiWi-Fi 7BluetoothBluetooth® 5.4
Wired connectivity
Ethernet network card2.5Gigabit LAN (RJ45) - 1x (Module: i226-v)
Video/audio inputs and outputs
Video outputsHDMI 2.1 (TMDS) x1 (up to 4K@60Hz)DP 1.4 x1 (up to 8K@60Hz/4K@144Hz)USB4 x2 (up to 8K@60Hz/4K@144Hz)Audio outputsHDMI 1x3.5mm combo jack 1xSpeakers 2xAudio inputsDigital microphone (DMIC) 2x3.5 mm combo jack 1x
Ports
FrontUSB Type A (USB3.2 Gen2) 2x3.5 mm combo jack 1xReset hole 1xUSB4 1x (Alt PD, 40Gbps, Alt PD Out 15W)RearHDMI 2.1 1xDP 1.4 1xUSB4 1x (Alt PD, 40Gbps, PD in 65-100W, PD out 15W)LAN RJ45 (2.5Gb) 1xOCulink 1xUSB Type A (USB2.0) 1xPower port (DC-In) 1x
Buttons and openings
ButtonsPower button 1xOpeningsReset hole 1x
Other
VESA mountingSupportedPower supply19V⎓6.32A 120W
