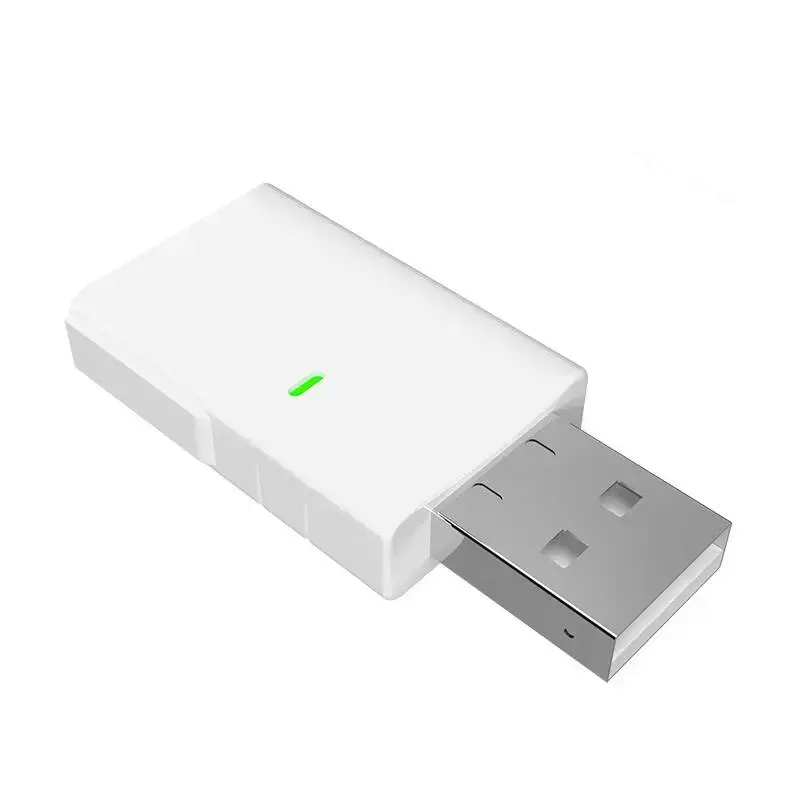

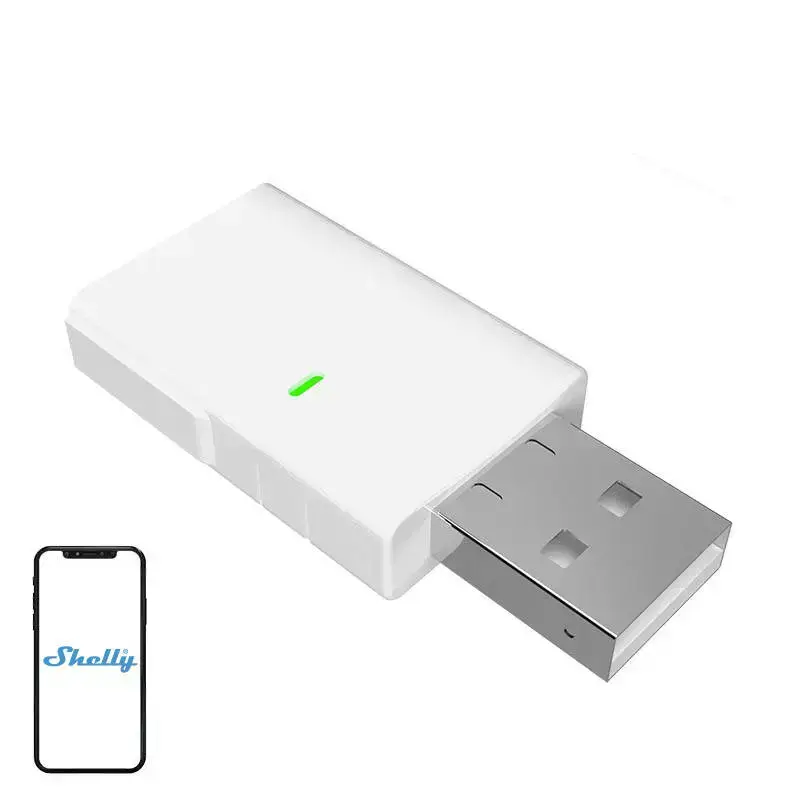

Bluetooth to Wi-Fi gateway in Shelly BLU Gateway USB-A dongle
The USB-A dongle connects to Wi-Fi and enables easy integration of BLE devices into a local network. Its applications range from apartments to condos, hotels to small offices, stores, restaurants and gas stations.
Simple operation
The device has a simple interface with a single button that acts as a reset. Pressing and holding the button for 5 seconds activates the device's access point mode and enables Bluetooth connection. Pressing and holding for 10 seconds restores the device to factory settings.
Manufacturer
Shelly
Model
GWF-KZ01
Color
white
Dimensions
45 x 20 x 8 mm
Weight
5 g
Material
Plastic
Ambient temperature
-20 °C to 40 °C
Humidity
30% to 70% relative humidity
Power supply
5 VDC (from USB Type A port)
Power consumption
1 W
RF bandwidth
2400 - 2495 MHz
Max RF power
20 dBm
Wi-Fi protocol
802.11 b/g/n
Wi-Fi range
Up to 30 m indoors and 50 m outdoors (Depends on local conditions)
Bluetooth protocol
4.2
Bluetooth range
Up to 20 m indoors and 30 m outdoors (Depends on local conditions)
CPU
ESP32
Memory
4 MB
Script storage
Yes
MQTT
Yes
CoAP
No
