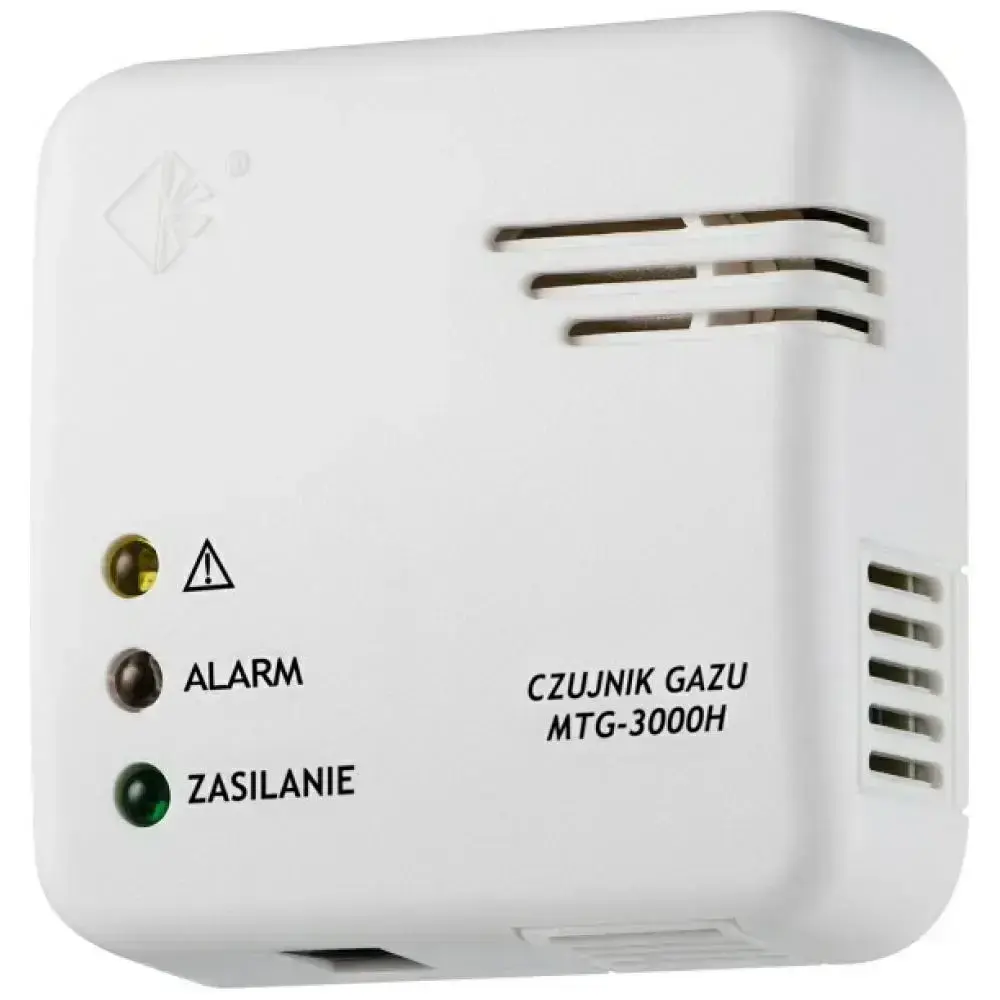

Explosion Gas Sensor KIDDE MTG-3000H
Precise Gas Detection
The MTG-3000H sensor is a reliable device for monitoring the presence of combustible gases such as methane, propane, and butane. Its sensitive catalytic sensor instantly detects even small amounts of gas leakage, triggering both optical and acoustic alarms. This allows users to quickly respond to the threat and avoid dangerous situations. The device continuously analyzes the air composition and automatically shuts off the alarm once the danger has passed. It is ideal for homes, boiler rooms, kitchens, and vehicles.
Safety Confirmed by Certification
The MTG-3000H stands out with its high quality and meets the requirements of standards PN-EN50194-1:2009 and PN-EN50194-2:2019. The TÜV Rheinland certification confirms its reliability, allowing it to be installed not only in residential rooms but also in cars, caravans, boats, and yachts. The device guarantees safe use in various environments, regardless of weather conditions. Its robust construction and compliance with European standards make the sensor a reliable choice for those who value safety.
Alarm Signaling and Diagnostics
The sensor is equipped with an advanced signaling system that, when detecting a dangerous concentration of gas, activates a flashing red LED and an alarm siren with a sound intensity of 85 dB. Additionally, it features a self-diagnostic system that monitors the proper functioning of the sensor and internal circuits. In case of a malfunction, a yellow LED lights up, informing the user that intervention is required. This ensures the device works reliably at all times, providing maximum safety.
Easy Installation and Wide Application
The MTG-3000H has been designed with user convenience in mind. It can be mounted on a wall or another surface using the mounting bracket included in the kit. The device is powered by a 12V DC voltage and can be connected to both a standard power socket and a car cigarette lighter socket (using a separately available adapter). It is suitable for various locations, from home kitchens and boiler rooms to vehicles, campers, and boats, increasing user safety.
Durability and Weather Resistance
The device is adapted to work in varying weather conditions. It can function in temperatures ranging from -10°C to 40°C, and in short-term mode even from -20°C to 50°C, making it suitable for use in both indoor and vehicle or boat environments. The sensor operates in humidity up to 95% RH, preventing failures related to harsh environmental conditions. Thanks to its durable ABS housing, the device is resistant to mechanical damage and prolonged use.
Technical Data
Brand
Kidde
Model
MTG-3000H
Sensor
High-sensitivity catalytic
Detected Gases
Natural gas (LNG methane), Propane, Butane, Propane-butane mixtures (LPG)
Alarm Threshold
12% LEL (Lower Explosive Limit), Propane: 0.20%, Butane: 0.17%, Methane: 0.53%
Power Signal
Green LED lights up
Alarm Signal
Optical – flashing red LED, Acoustic – siren with sound intensity of approx. 85 dB
Malfunction Signal
Yellow LED lights up
Housing
ABS, white color
Included in the kit
Power supply, mounting bracket, mounting screws, user manual
Power Source

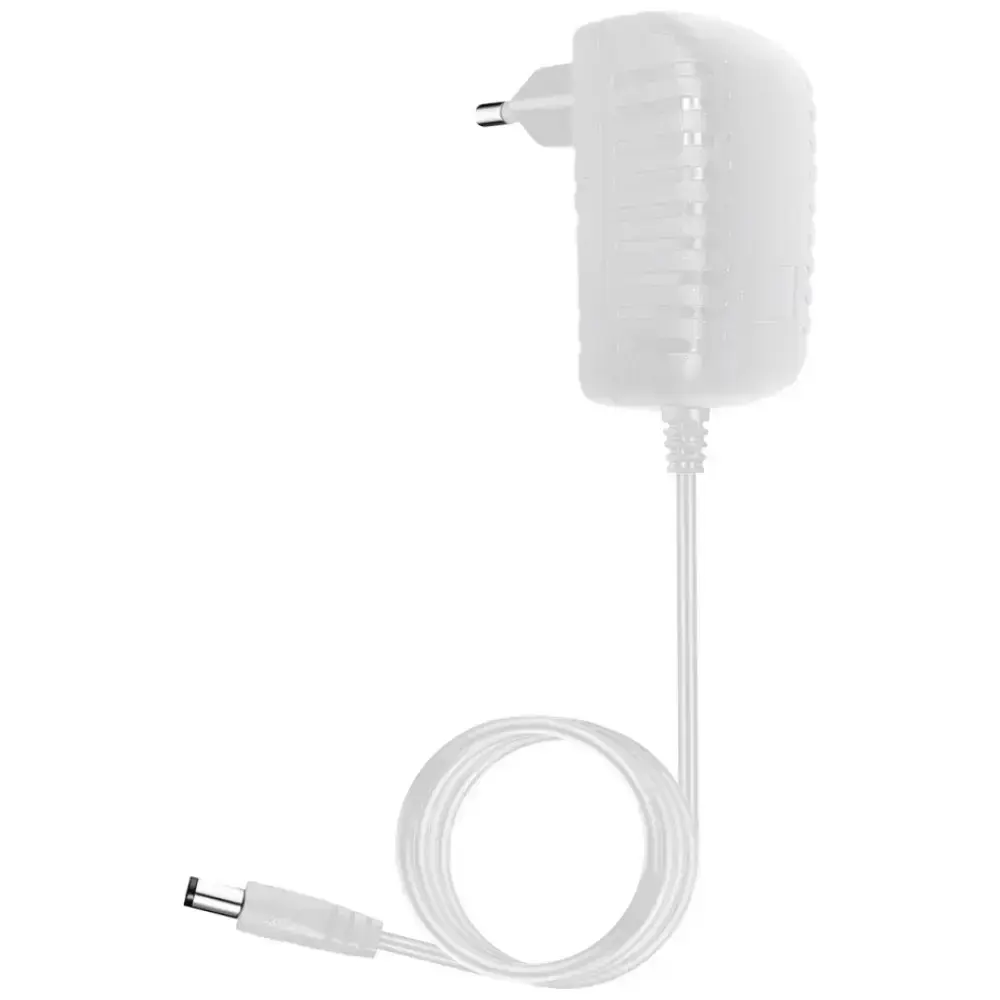

Power supply 100-240V ~ 50-60Hz 0.2A, +12V DC 0.3A, 1.8m power cord with European type C plug, car cigarette lighter plug (available separately)
Operating Conditions
Temperature: -10 ~ 40°C, Humidity: up to 95% RH
Storage Conditions
Temperature: -20 ~ 60°C, Humidity: up to 95% RH
Certifications and Approvals
PN-EN50194-1:2009, TÜV Rheinland certifying body, PN-EN50194-2:2019, TÜV Rheinland certifying body, CE
Warranty
3 years
