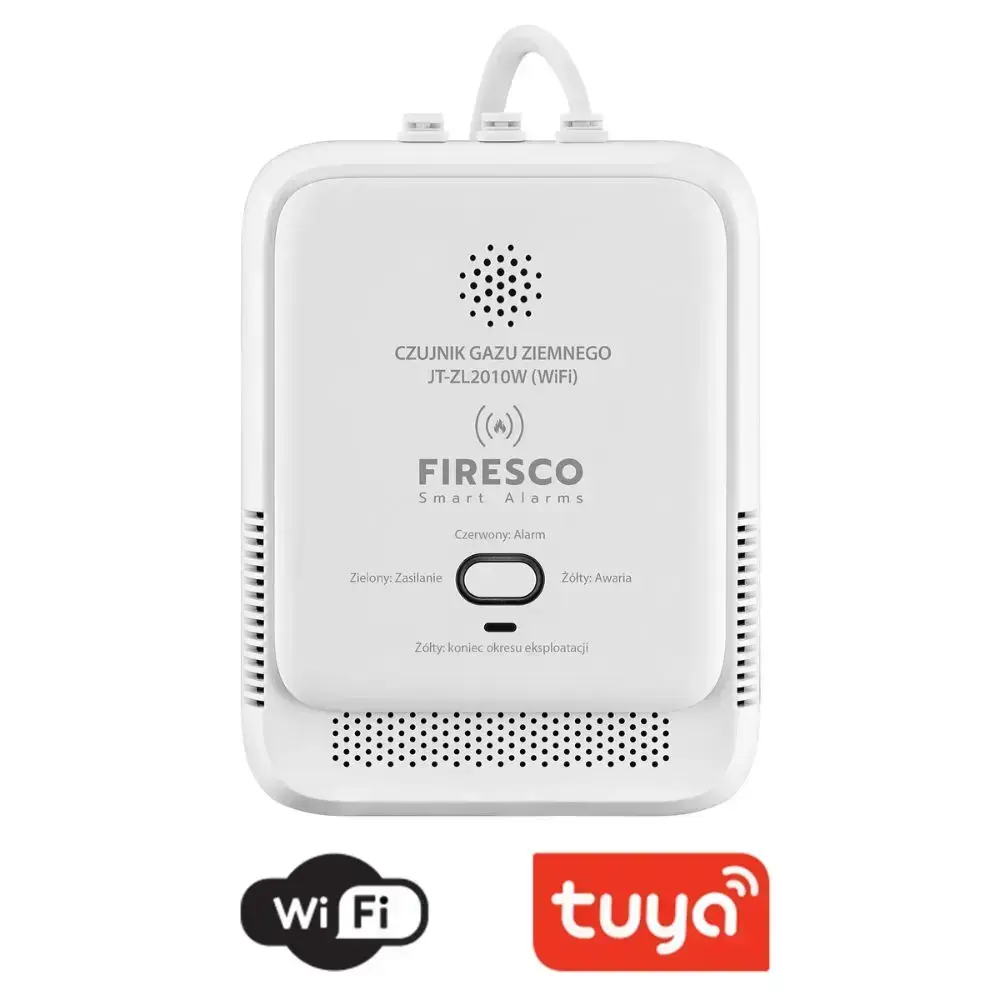

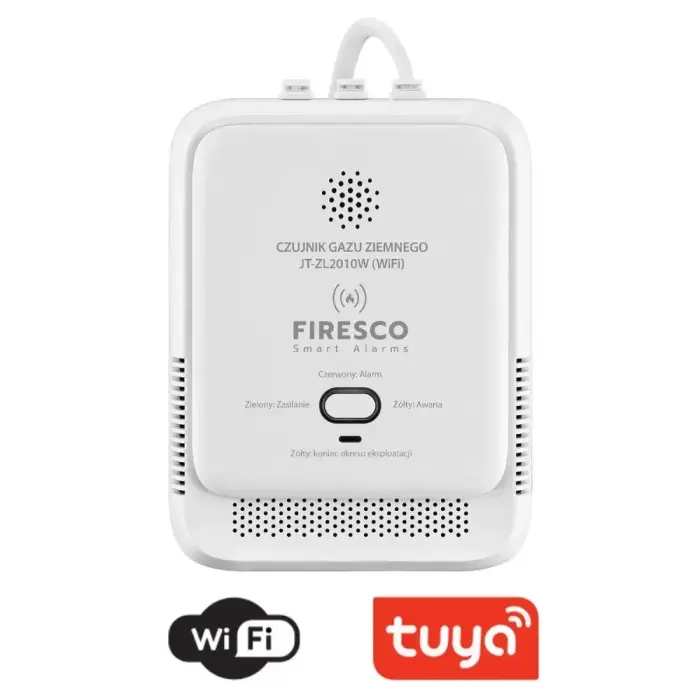

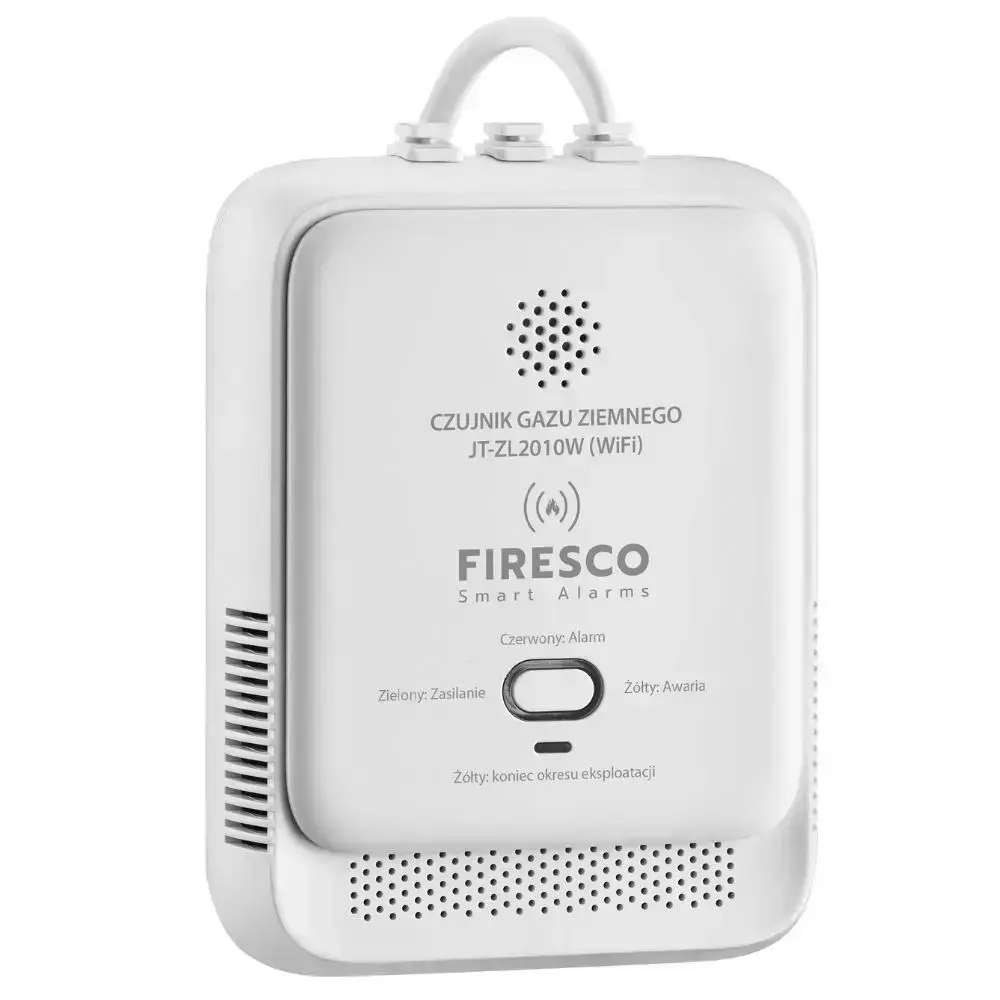

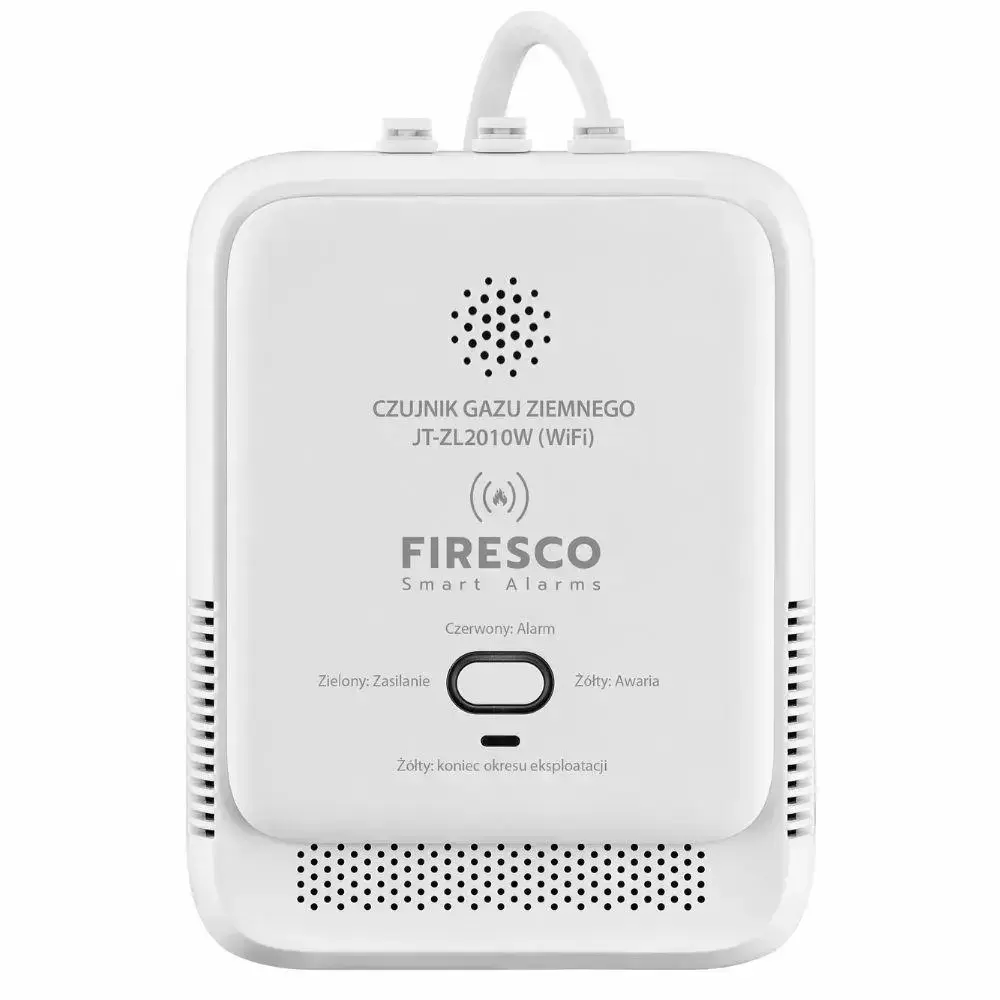

Firesco Natural Gas Detector Wi-Fi TUYA version JT-ZL2010W
Precise protection for your home
The Firesco JT-ZL2010W natural gas detector is designed to monitor the presence of methane (CH4) and natural gas (LNG) in rooms. Equipped with an advanced semiconductor sensor, it offers high accuracy and durability of up to 5 years, ensuring long-lasting and reliable protection against the dangers of gas leaks.
Easy operation and convenient features
The Firesco JT-ZL2010W can operate as a standalone unit, but thanks to the built-in WiFi module, it can also be connected to the Tuya app, enabling remote real-time gas level monitoring. Once connected to the home network, the detector immediately sends alarm messages, notifying the user of dangerous situations. Whether used independently or connected to the app, the device offers full functionality and protection.
Power supply and constant readiness
The Firesco JT-ZL2010W detector is powered by 220-240V AC, making it suitable for installation in most residential rooms such as kitchens, boiler rooms, or spaces with gas appliances. The power cable (150 cm long, with a European type C plug) ensures stable operation even when there is no power outlet nearby. The detector is intended for mounting on interior walls and can be used in temperatures from 0°C to 55°C and humidity up to 95%.
Immediate response
The detector triggers optical and acoustic signaling when the gas concentration reaches 7% of the Lower Explosive Limit (LEL) for methane, providing an early warning of danger. An 85 dB sound alarm and flashing red LED effectively attract the user's attention, enabling a quick response. This feature ensures immediate action when the gas level approaches dangerous values.
High durability
Thanks to the built-in self-diagnostic system, the detector continuously monitors the condition of the sensor and internal circuits. If any irregularity is detected, the device signals the problem with a yellow LED and an appropriate sound, allowing the user to intervene quickly. Additionally, the test function provides full control over the device’s operation, enabling quick checks.
Technical Data
Brand
Firesco
Model
JT-ZL2010W
Sensor type
Semiconductor
Sensor lifespan
Up to 5 years
Detected gases
Natural gas (methane CH4)
Communication protocol
2.4 GHz band (channels 1-14), 802.11 b standard (maximum +16 dBm)
Range
Max. 100m (open space)
Alarm threshold
≤ 7% LEL ± 3% LEL
Power indication
Green LED lights up
Alarm indication
Optical – flashing red LED
Acoustic – 85 dB siren at 1 m distance
Phone notification
Fault indication
Yellow LED lights up
End-of-life indication
Sound and light
Test button
For device inspection and operation
Included accessories
Detector, mounting bracket, mounting plugs, user manual in Polish
Operating conditions
Temperature: 0°C ~ 55°C
Humidity: up to 95% RH, non-condensing
Storage conditions
Temperature: -25°C ~ 55°C
Humidity: up to 95% RH, non-condensing
Input voltage
220-240V AC 50/60Hz
Power consumption: standby/alarm
0.5 W / 4 W
Power cable
1.5 m, European type C plug
Certificates and approvals
PN-EN50194-1:2009, confirmed by an independent, notified testing body CE
Warranty
2 years
Dimensions
112 x 86 x 33.5 mm
Detector weight
206 g
