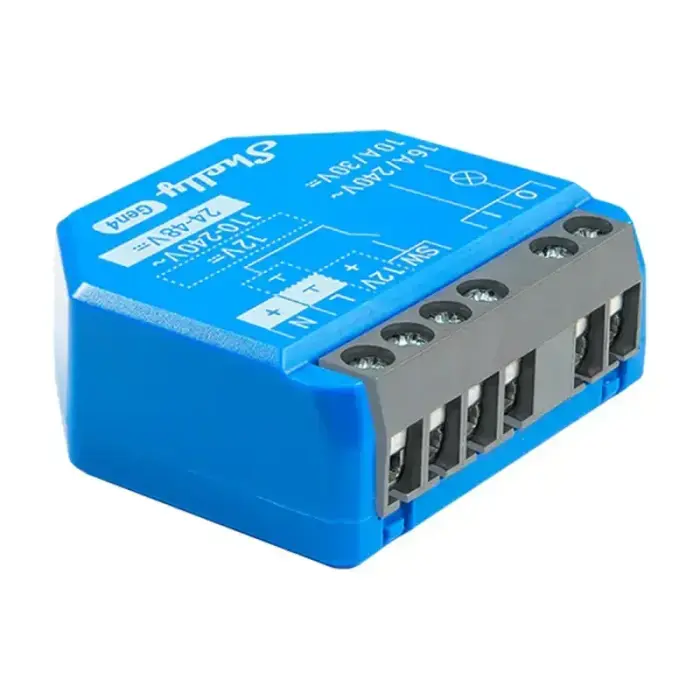

Shelly 1 Gen4 Controller Zigbee/Matter

Shelly 1 Gen4 Controller Zigbee/Matter

The Shelly 1 Gen4 Zigbee/Matter controller is a compact, backplane controller with potential-free contacts that allows you to remotely control a variety of electrical devices - either via the local network or the Internet. The device supports multiple communication protocols (Wi-Fi, Bluetooth, Zigbee, Matter), so you can easily adapt it to your preferred home automation system. It can be integrated with popular platforms such as Google Home, Alexa and SmartThings. The controller will work well in residential, office, hotel and other installations.

Integration with any system

The Shelly 1 Gen4 controller supports four major wireless communication protocols: Zigbee (802.15.4), Wi-Fi (802.11 b/g/n), Bluetooth 4.2 and Matter. This allows you to choose for yourself which medium you want to use depending on your installation capabilities and smart home ecosystem. The product also acts as a Zigbee repeater, which extends the network's range. In case of a weak Wi-Fi signal, it can act as its repeater, increasing the stability of the connection.

Remote access and schedules

The device can operate over both local Wi-Fi and the Internet, allowing remote access regardless of the user's location. A built-in web interface allows configuration and control without installing additional applications. An advanced scheduling system provides the ability to define detailed scenarios taking into account the day of the week, the hour and even the second, which works well for automation of lighting, ventilation or garden watering, among others.

Cooperation with applications and systems

The Shelly 1 Gen4 model works with many home automation systems. It supports HTTP APIs, MQTT(S), WebHooks, UDP protocol and virtual components. In addition, it offers KNX net/IP compatibility. With ShellyScript scripting support, it is possible to create custom rules and operation logic.



General

ManufacturerShellyModel1Gen4



Physical parameters

Dimensions37 x 42 x 16 mm / 1.46 x 1.65 x 0.63 inchesWeight26 g / 0.92 ouncesMaximum tightening torque of screw terminals0.4 Nm / 3.5 lbinCable cross section0.2 to 2.5 mm² / 24 to 14 AWG (solid, multi-stranded and sleeved wires)Length of stripped wire6 to 7 mm / 0.24 to 0.28 in.MountingWall consoleHousing materialPlasticHousing colorBlueClamp colorGray



Environmental conditions

Operating temperature-20°C to 40°C / -5°F to 105°FOperating humidity30% to 70% RHMaximum altitude.2000 m / 6562 ft



Electrical parameters

Power supply110-240 V~ ; 24-48 V= ; 12 V=Power consumption< 1 WNeutral wire requiredNoExternal protectionOvercurrent circuit breaker according to EN60898-1 (trip characteristic B or C, rated current max. 16 A, minimum breaking capacity 6 kA, energy limitation class 3)



Output circuit parameters

Maximum switching voltage240 V~ ; 30 V=Maximum switching current16 A / 240 V~ ; 10 A / 30 V=



Sensors and measurements

Built-in temperature sensorYes



Wi-Fi

Protocol802.11 b/g/nRF bandwidth2412 - 2472 MHzMaximum RF transmit power< 20 dBmRangeUp to 30 m indoors / 100 feet and up to 50 m outdoors / 160 feet (depending on local conditions)



Bluetooth

Protocol4.2RF band2402 - 2480 MHzMaximum RF transmit power< 4 dBmRangeUp to 10 m indoors / 33 feet and up to 30 m outdoors / 100 feet (depending on local conditions)



Zigbee

Protocol802.15.4Zigbee repeater functionYesRF band2400 - 2483.5 MHzMaximum RF transmit power< 20 dBmRangeUp to 100 m indoors / 328 feet and up to 300 m outdoors / 984 feet (depending on local conditions)



Microprocessor unit

ProcessorESP-Shelly-C68FFlash memory8 MB



Firmware features

Number of schedules20Webhooks (URL shares)20, with 5 URLs per webhookScripting supportYesMQTTYes
