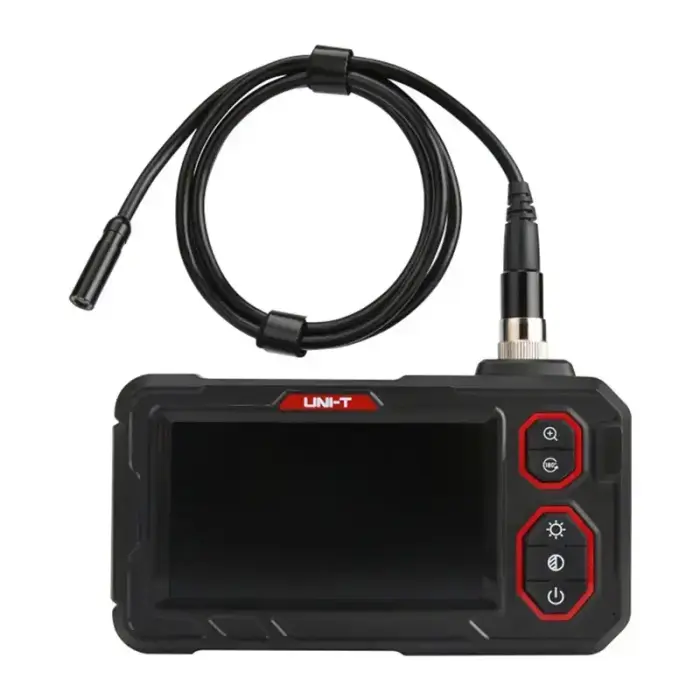

Uni-T UT667-10m Borescope

Uni-T UT667-10m borescope

The Uni-T UT667 borescope with a 10-meter cable is designed for inspecting hard-to-reach areas without the need to disassemble components. It is ideal for industrial, automotive, and maintenance applications where a quick view of the interior of machines or pipes is essential. Equipped with a 4.3" screen, it provides a clear image, and features such as image rotation and zoom facilitate the analysis of details during operation.

Image Quality and Ease of Use

The 8 mm diameter camera with LED lighting allows for operation in dimly lit spaces, and brightness adjustment lets you tailor visibility to the conditions. The 10 m cable provides a good balance between reach and control over the camera, which works well for standard inspections. The IP67-rated waterproof probe and rugged construction increase the device’s durability during daily use.

Included

• UT667-10m borescope
• USB-C cable
• Hook, side mirror, magnet
• Mounting clamps
• User manual

Specifications

ManufacturerUni-T ModelUT667-10m Product typeIndustrial borescope Display type4.3" IPS LCD display Display resolution1280 × 720 px System languageEnglish FunctionsScreen rotation, black-and-white images, color conversion, zoom in, zoom out Cable typeReplaceable cable with aviation connector Cable length10 m Lens diameter8 mm Image sensorCMOS Field of view70° Focus range (Depth of field)20...100 mm LED brightness adjustment4 levels Number of LEDs8 Camera resolution300K px Probe protection ratingIP67 Power supply3.7 V / 2000 mAh rechargeable battery Operating time5 h Camera head temperature range0...80°C Ambient operating temperature range0...45°C Ambient operating humidity range<90% RH (non-condensing) CertificationsCE, RoHS
