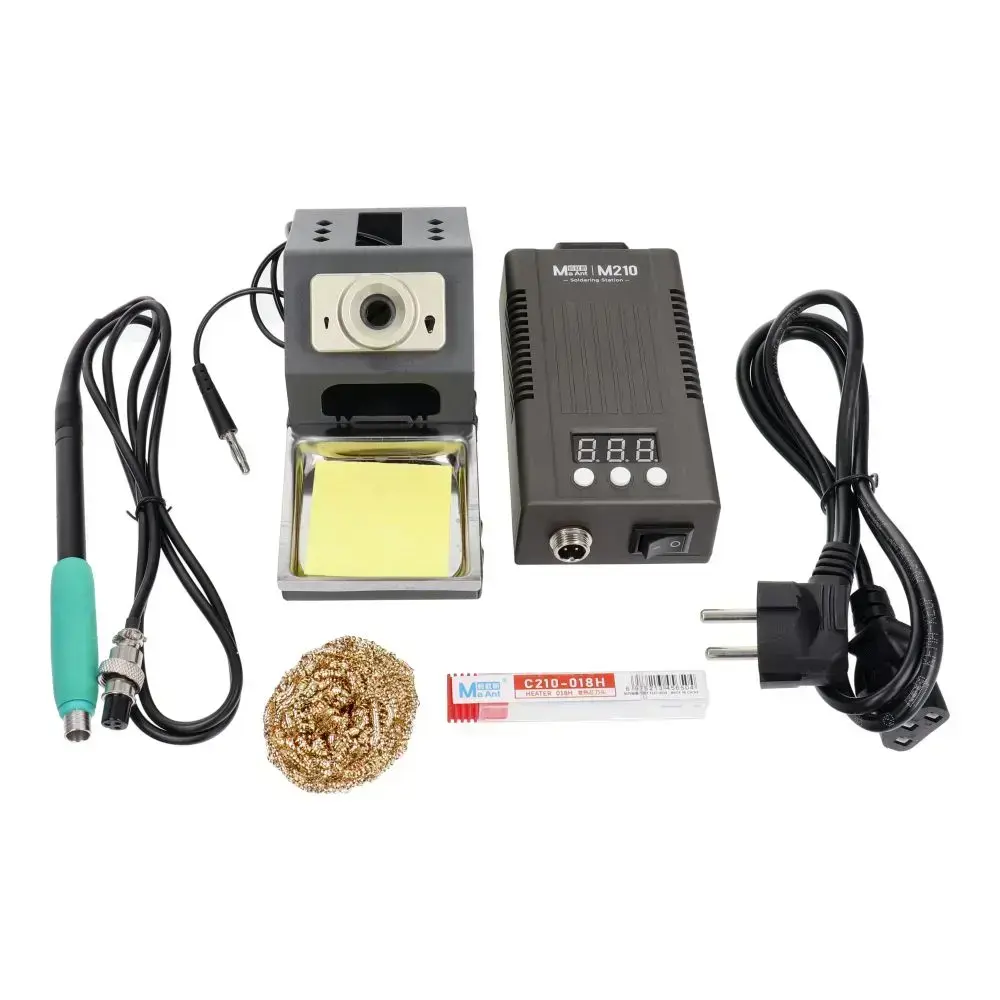

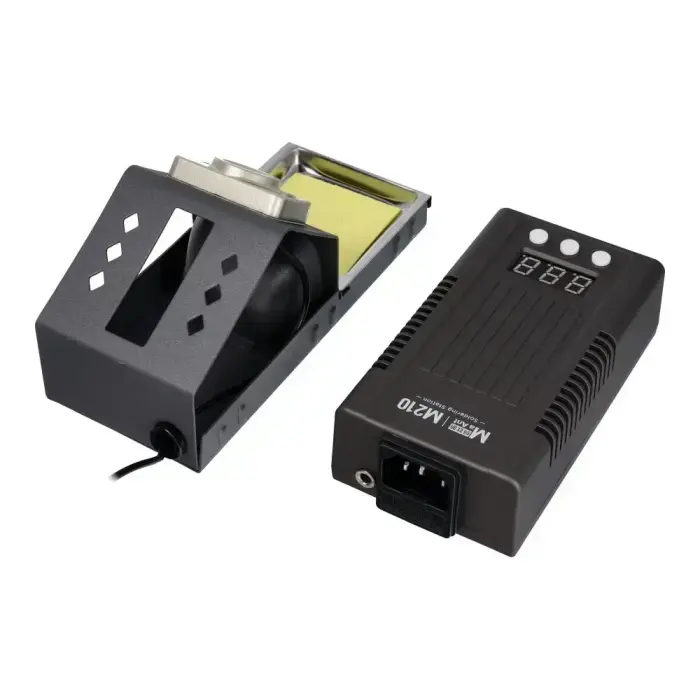

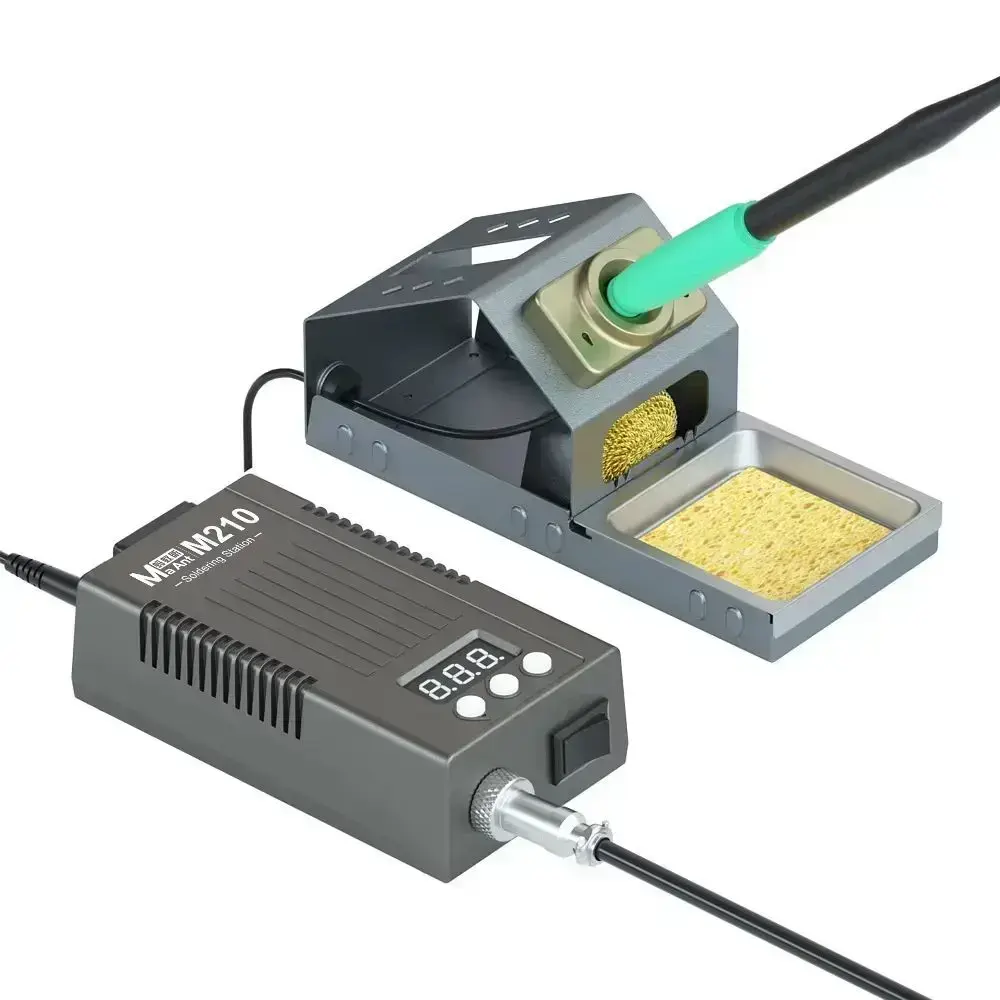

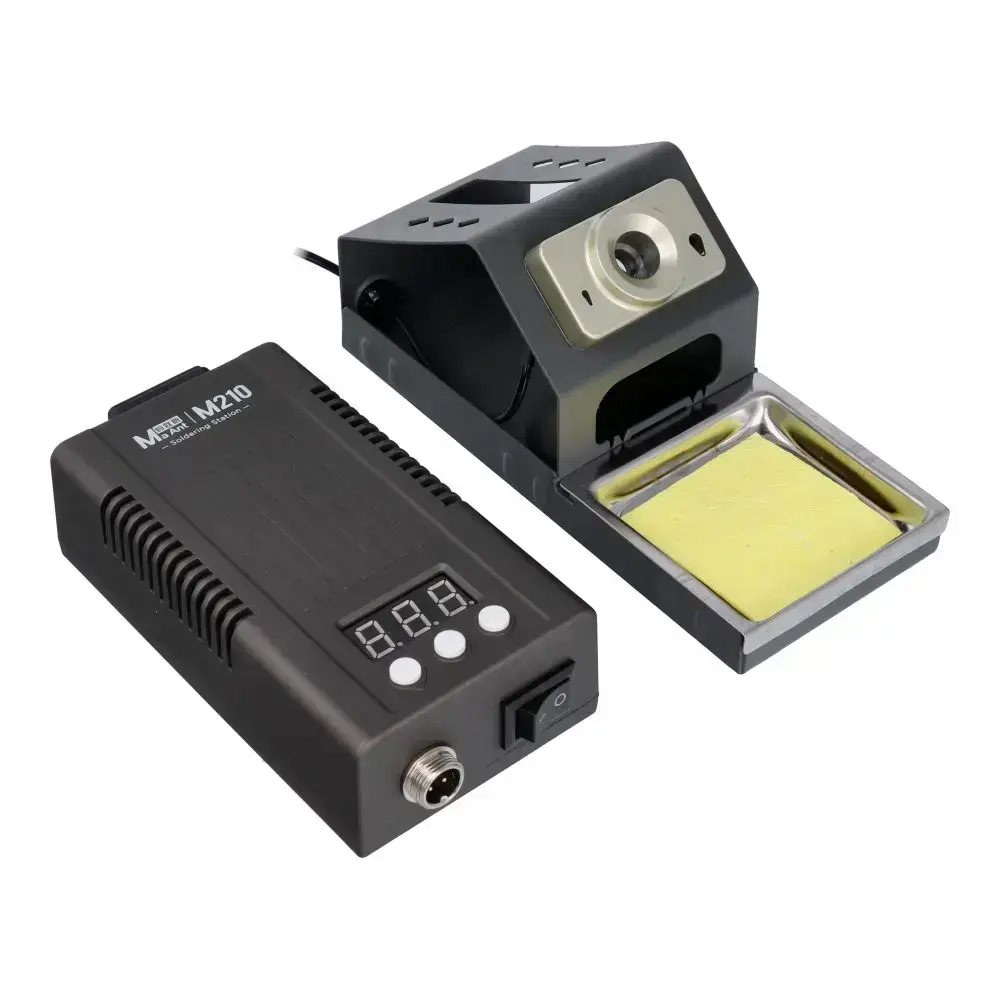

The MAANT M210 intelligent micro-soldering station is designed for professional electronic repair workshops, combining cutting-edge performance and an intuitive interface.
It features digital temperature management, a tool detection sensor, and advanced power control, tailored to the requirements of technicians in telephony, embedded computing, and microelectronics.
Its compact design allows for easy installation on a workstation, while its backlit OLED screen provides clear visibility of real-time parameters.
The system automatically manages temperature profiles based on detected faults, ensuring precise heating/cooling cycles and extending the lifespan of soldering tips.
Advantages:
Ultra-precise temperature for delicate work on SMD components
Automatic shutdown in case of inactivity for safety and longevity
Memorized profiles for different tasks (desoldering, fine soldering...)
Simple interface, easily customizable even without a manual
Robust construction designed for demanding environments
Firmware updates via USB to stay up to date
Technical Specifications:
Maximum power: 80 W
Temperature range: 150°C – 480°C, precision ±1°C
Screen: 1.3" OLED, wide angles, temperature display, setpoint, time
Automatic presence sensor at rest (standby mode)
Storage: of 5 user profiles
Tip compatibility: T12 series (soldering iron sold separately)
Connectivity: USB-C (firmware update), 24V DC input
Protection: overheating protection, stabilized power supply, ceramic thermal sensor
Casing: robust aluminum alloy,
Dimensions: 120 × 100 × 90 mm
Approximate weight: 1 kg (main unit only)
